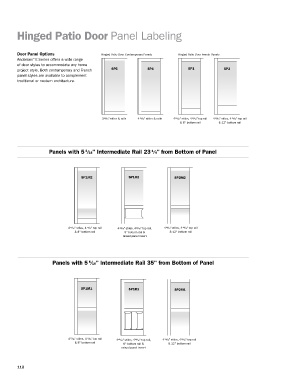

Hinged Patio Door Panel Labeling

Door Panel Options Hinged Patio Door Contemporary Panels Hinged Patio Door French Panels
®
Andersen E-Series offers a wide range
of door styles to accommodate any home
project style. Both contemporary and French SP5 SP4 SP1 SP2
panel styles are available to complement
traditional or modern architecture.

3 11 ⁄16" stiles & rails 4 11 ⁄16" stiles & rails 4 11 ⁄16" stiles, 4 11 ⁄16" top rail 4 11 ⁄16" stiles, 4 11 ⁄16" top rail
& 8" bottom rail & 12" bottom rail

Panels with 5 / 16" Intermediate Rail 23 / 4" from Bottom of Panel
5
1

SP1M2 SP1R2 SP2M2

4 11 ⁄16" stiles, 4 11 ⁄16" top rail 4 11 ⁄16" stiles, 4 11 ⁄16" top rail, 4 11 ⁄16" stiles, 4 11 ⁄16" top rail
& 8" bottom rail 8" bottom rail & & 12" bottom rail
raised panel insert

Panels with 5 / 16" Intermediate Rail 35" from Bottom of Panel
5

SP1M1 SP1R1 SP2M1

4 11 ⁄16" stiles, 4 11 ⁄16" top rail 4 11 ⁄16" stiles, 4 11 ⁄16" top rail, 4 11 ⁄16" stiles, 4 11 ⁄16" top rail
& 8" bottom rail 8" bottom rail & & 12" bottom rail
raised panel insert
