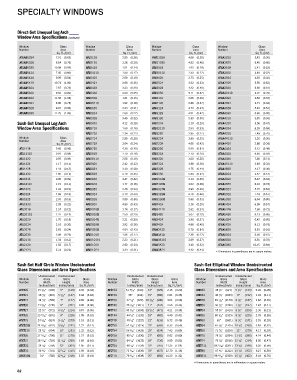

Page 84 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

SPECIALTY WINDOWS

Direct-Set Unequal Leg Arch Sash-Set Unequal Leg Arch Sash-Set Unequal Leg Arch Sash-Set Unequal Leg Arch
Window Area Specifications (continued) Window Area Specifications Window Area Specifications Window Area Specifications

Window Glass Window Glass Window Glass Window Glass
Number Area Number Area Number Area Number Area
Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
ATUAD5024 7.01 (0.65) ATU2128 2.80 (0.26) ATU21028 4.08 (0.38) ATUA3828 5.43 (0.50)
ATUAD5028 8.54 (0.79) ATU2130 3.28 (0.30) ATU21030 4.82 (0.45) ATUA3830 6.45 (0.60)
ATUAD5030 10.08 (0.94) ATU2418 1.51 (0.14) ATU3018 1.93 (0.18) ATUA3918 2.41 (0.22)
ATUAD5424 7.45 (0.69) ATU24110 1.80 (0.17) ATU30110 2.33 (0.22) ATUA3920 3.46 (0.32)
ATUAD5428 9.09 (0.84) ATU2420 2.09 (0.19) ATU3020 2.73 (0.25) ATUA3924 4.50 (0.42)
ATUAD5430 10.74 (1.00) ATU2424 2.66 (0.25) ATU3024 3.52 (0.33) ATUA3928 5.55 (0.52)
ATUAD5824 7.87 (0.73) ATU2428 3.23 (0.30) ATU3028 4.32 (0.40) ATUA3930 6.60 (0.61)
ATUAD5828 9.63 (0.89) ATU2430 3.80 (0.35) ATU3030 5.11 (0.47) ATUA40110 3.02 (0.28)
ATUAD5830 11.38 (1.06) ATU2618 1.61 (0.15) ATU3118 2.06 (0.19) ATUA4020 3.58 (0.33)
ATUAD6024 8.05 (0.75) ATU26110 1.92 (0.18) ATU3120 2.88 (0.27) ATUA4024 4.71 (0.44)
ATUAD6028 9.91 (0.92) ATU2620 2.24 (0.21) ATU3124 3.70 (0.34) ATUA4028 5.84 (0.54)
ATUAD6030 11.78 (1.09) ATU2624 2.86 (0.27) ATU3128 4.51 (0.42) ATUA4030 6.96 (0.65)
ATU2628 3.49 (0.32) ATU3130 5.33 (0.50) ATUA4318 3.85 (0.36)
Sash-Set Unequal Leg Arch ATU2630 4.12 (0.38) ATU3218 2.10 (0.20) ATUA4320 5.06 (0.47)
Window Area Specifications ATU2718 1.69 (0.16) ATU32110 2.53 (0.23) ATUA4324 6.28 (0.58)
ATU2720 2.34 (0.22) ATU3220 2.95 (0.27) ATUA4328 7.49 (0.70)
Window Glass ATU2724 2.99 (0.28) ATU3224 3.80 (0.35) ATUA44110 3.26 (0.30)
Number Area
Sq. Ft./(m 2 ) ATU2728 3.64 (0.34) ATU3228 4.65 (0.43) ATUA4420 3.88 (0.36)
ATU1418 0.69 (0.06) ATU2730 4.30 (0.40) ATU3230 5.50 (0.51) ATUA4424 5.12 (0.48)
ATU14110 0.81 (0.08) ATU2818 1.74 (0.16) ATU3318 2.13 (0.20) ATUA4428 6.36 (0.59)
ATU1420 0.93 (0.09) ATU28110 2.08 (0.19) ATU3320 3.00 (0.28) ATUA4430 7.60 (0.71)
ATU1424 1.17 (0.11) ATU2820 2.42 (0.22) ATU3324 3.88 (0.36) ATUA48110 3.49 (0.32)
ATU1428 1.41 (0.13) ATU2824 3.10 (0.29) ATU3328 4.75 (0.44) ATUA4820 4.17 (0.39)
ATU1430 1.65 (0.15) ATU2828 3.79 (0.35) ATU3330 5.63 (0.52) ATUA4824 5.52 (0.51)
ATU1818 0.98 (0.09) ATU2830 4.47 (0.42) ATU3318G 2.14 (0.20) ATUA4828 6.87 (0.64)
ATU18110 1.15 (0.11) ATU2918 1.77 (0.16) ATU3320G 3.02 (0.28) ATUA4830 8.22 (0.76)
ATU1820 1.33 (0.12) ATU2920 2.48 (0.23) ATU3324G 3.90 (0.36) ATUA5024 5.72 (0.53)
ATU1824 1.68 (0.16) ATU2924 3.19 (0.30) ATU3328G 4.78 (0.44) ATUA5028 7.18 (0.67)
ATU1828 2.03 (0.19) ATU2928 3.89 (0.36) ATU3330G 5.66 (0.53) ATUA5030 8.64 (0.80)
ATU1830 2.38 (0.22) ATU2930 4.60 (0.43) ATU3418 2.16 (0.20) ATUA5424 6.09 (0.57)
ATU2018 1.24 (0.12) ATU2918G 1.78 (0.17) ATU34110 2.62 (0.24) ATUA5428 7.66 (0.71)
ATU20110 1.47 (0.14) ATU2920G 2.50 (0.23) ATU3420 3.07 (0.29) ATUA5430 9.23 (0.86)
ATU2020 1.70 (0.16) ATU2924G 3.21 (0.30) ATU3424 3.98 (0.37) ATUA5824 6.45 (0.60)
ATU2024 2.16 (0.20) ATU2928G 3.92 (0.36) ATU3428 4.88 (0.45) ATUA5828 8.13 (0.76)
ATU2028 2.62 (0.24) ATU2930G 4.64 (0.43) ATUA3430 5.79 (0.54) ATUA5830 9.81 (0.91)
ATU2030 3.08 (0.29) ATU21018 1.86 (0.17) ATUA3818 2.38 (0.22) ATUA6024 6.56 (0.61)
ATU2118 1.34 (0.12) ATU210110 2.23 (0.21) ATUA38110 2.89 (0.27) ATUA6028 8.36 (0.78)
ATU2120 1.83 (0.17) ATU21020 2.60 (0.24) ATUA3820 3.40 (0.32) ATUA6030 10.15 (0.94)
ATU2124 2.31 (0.21) ATU21024 3.34 (0.31) ATUA3824 4.42 (0.41) • Dimensions in parentheses are in square meters.

Sash-Set Half Circle Window Unobstructed Sash-Set Half Circle Window Unobstructed Sash-Set Elliptical Window Unobstructed
Glass Dimensions and Area Specifications Glass Dimensions and Area Specifications Glass Dimensions and Area Specifications
Unobstructed Unobstructed Unobstructed Unobstructed Unobstructed Unobstructed
Window Glass Glass Glass Window Glass Glass Glass Window Glass Glass Glass
Number Width Height Area Number Width Height Area Number Width Height Area
Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 )
ATCT20 15 3 / 16 " (386) 5" (126) 0.38 (0.04) ATCT34 31 15 / 16 " (810) 13" (329) 2.15 (0.20) ATET40 36 1 / 2 " (927) 5 1 / 4 " (133) 0.94 (0.09)
ATCT21 16 1 / 8 " (410) 5 7 / 16 " (137) 0.44 (0.04) ATCT38 36" (914) 15" (380) 2.81 (0.26) ATET44 40 3 / 4 " (1035) 6" (152) 1.18 (0.11)
ATCT24 19 1 / 2 " (495) 7" (177) 0.69 (0.06) ATCT39 37 1 / 8 " (943) 15 9 / 16 " (395) 3.01 (0.28) ATET48 46 7 / 16 " (1179) 6 5 / 8 " (167) 1.63 (0.15)
ATCT26 21 9 / 16 " (548) 8" (202) 0.88 (0.08) ATCT40 40 1 / 16 " (1017) 17" (431) 3.56 (0.33) ATET50 50 5 / 8 " (1286) 7 3 / 8 " (187) 1.84 (0.17)
ATCT27 22 1 / 2 " (572) 8 7 / 16 " (214) 0.97 (0.09) ATCT43 43 3 / 16 " (1098) 18 9 / 16 " (471) 4.21 (0.39) ATET54 55 1 / 2 " (1410) 8 1 / 8 " (206) 2.30 (0.21)
ATCT28 23 11 / 16 " (601) 9" (228) 1.09 (0.10) ATCT44 44 1 / 8 " (1120) 19" (482) 4.40 (0.41) ATET58 60 1 / 16 " (1525) 8 7 / 8 " (225) 2.78 (0.26)
ATCT29 24 9 / 16 " (624) 9 7 / 16 " (239) 1.19 (0.11) ATCT48 48 1 / 8 " (1223) 21" (533) 5.32 (0.49) ATET60 63" (1601) 9 1 / 2 " (241) 3.01 (0.28)
ATCT29G 24 13 / 16 " (631) 9 9 / 16 " (242) 1.22 (0.11) ATCT50 52 3 / 16 " (1325) 23" (583) 6.33 (0.59) ATET64 67 1 / 8 " (1705) 10 1 / 4 " (260) 3.48 (0.32)
ATCT210 25 1 / 8 " (654) 10" (253) 1.32 (0.12) ATCT54 56 3 / 16 " (1428) 25" (634) 7.43 (0.69) ATET68 71 7 / 8 " (1826) 11" (279) 4.17 (0.39)
ATCT30 27 13 / 16 " (706) 11" (279) 1.57 (0.15) ATCT58 60 1 / 4 " (1530) 27" (685) 8.62 (0.80) ATET70 76 1 / 8 " (1934) 11 3 / 4 " (298) 4.74 (0.44)
ATCT31 28 11 / 16 " (729) 11 7 / 16 " (290) 1.69 (0.16) ATCT60 64 1 / 4 " (1632) 29" (736) 9.89 (0.92) ATET74 79 3 / 8 " (2016) 12 3 / 8 " (314) 5.05 (0.47)
ATCT32 29 7 / 8 " (758) 12" (304) 1.85 (0.17) ATCT64 68 1 / 4 " (1734) 31" (787) 11.25 (1.04) ATET711 86 11 / 16 " (2201) 13 3 / 4 " (348) 6.20 (0.58)
ATCT33 30 3 / 4 " (781) 12 7 / 16 " (315) 1.98 (0.18) ATCT68 72 5 / 16 " (1836) 33" (837) 12.70 (1.18) ATET80 87 1 / 2 " (2222) 13 7 / 8 " (352) 6.27 (0.58)
ATCT33G 31" (788) 12 9 / 16 " (318) 2.02 (0.19) ATCT70 76 5 / 16 " (1938) 35" (888) 14.23 (1.32) ATET811 98 13 / 16 " (2509) 15 7 / 8 " (402) 8.18 (0.76)
• Dimensions in parentheses are in millimeters or square meters.
