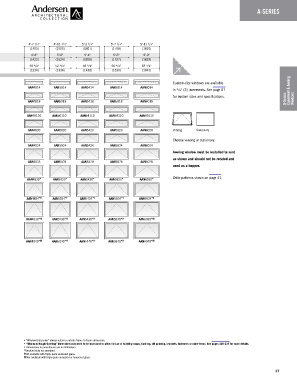

Page 39 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

A-SERIES

4'-7 1 /4" 4'-11 1 /4" 5'-3 1 /4" 5'-7 1 /4" 5'-11 1 /4"
(1403) (1505) (1607) (1708) (1810)
4'-8" 5'-0" 5'-4" 5'-8" 6'-0"
(1422) (1524) (1626) (1727) (1829)
48 5 /8" 52 5 /8" 56 5 /8" 60 5 /8" 64 5 /8"
(1234) (1336) (1438) (1539) (1641)

Custom-size windows are available
AAN4814 AAN5014 AAN5414 AAN5814 AAN6014
1
in ⁄ 8" (3) increments. See page 67 Casement & Awning
for custom sizes and specifications.
AAN4818 AAN5018 AAN5418 AAN5818 AAN6018 A-Series Windows

AAN48110 AAN50110 AAN54110 AAN58110 AAN60110

Stationaryy
Stationar
Venting
Venting
AAN4820 AAN5020 AAN5420 AAN5820 AAN6020 Venting Stationary
Choose venting or stationary.
AAN4824 AAN5024 AAN5424 AAN5824 AAN6024
Awning window must be installed to vent
as shown and should not be rotated and
AAN4828 AAN5028 AAN5428 AAN5828 AAN6028
used as a hopper.

AAN4830 * AAN5030 * AAN5430 * AAN5830 * AAN6030 * Grille patterns shown on page 41.

AAN4834 * † AAN5034 * † AAN5434 * † AAN5834 * † AAN6034 * †

AAN4838 * †† AAN5038 * †† AAN5438 * †† AAN5838 * †† AAN6038 * ††

AAN4840 * †† AAN5040 * †† AAN5440 * †† AAN5840 * †† AAN6040 * ††

• "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters.
*Tandem locks are standard.
† Not available with triple-pane annealed glass.
†† Not available with triple-pane annealed or tempered glass.
