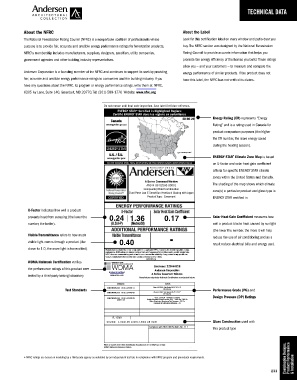

Page 235 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

TECHNICAL DATA

About the NFRC About the Label
The National Fenestration Rating Council (NFRC) is a nonpartisan coalition of professionals whose Look for this certification label on every window and patio door you
purpose is to provide fair, accurate and credible energy performance ratings for fenestration products. buy. The NFRC section was designed by the National Fenestration
NFRC's membership includes manufacturers, suppliers, designers, specifiers, utility companies, Rating Council to provide accurate information that helps you
government agencies and other building industry representatives. promote the energy efficiency of the homes you build. These ratings
allow you – and your customers – to measure and compare the
Andersen Corporation is a founding member of the NFRC and continues to support its work by providing energy performance of similar products. If the product does not
fair, accurate and credible energy performance ratings to consumers and the building industry. If you have this label, the NFRC has not verified its claims.
have any questions about the NFRC, its program or energy performance ratings, write them at: NFRC,
6305 Ivy Lane, Suite 140, Greenbelt, MD 20770, Tel: (301) 589-1776 Website: www.nfrc.org

Do not remove until nal code inspection. Save label for future reference.
ENERGY STAR® Certified in Highlighted Regions
Certifié ENERGY STAR dans les régions en surbrillance
ER/RE 20 Energy Rating (ER) represents "Energy
Rating" and is a rating used in Canada for
product comparison purposes (the higher
the ER number, the more energy saved
during the heating season).
= Certified/Certifié
ENERGY STAR Climate Zone Map is based
®
DO NOT REMOVE UNTIL FINAL INSPECTION/NE PAS RETIRER AVANT L’INSPECTION FINALE on U-factor and solar heat gain coefficient
criteria for specific ENERGY STAR climate
zones within the United States and Canada.
A-Series Casement Window
AND-N-86-02568-00001 The shading of the map shows which climate
Composite/Wood Combination
Dual-Pane Low-E SmartSun HeatLock Glazing with Argon zone(s) a particular product and glass type is
Product Type: Casement ENERGY STAR certified in.

U-Factor indicates how well a product
prevents heat from escaping (the lower the Solar Heat Gain Coefficient measures how
0.24 1.36 0.17
number, the better). well a product blocks heat caused by sunlight
(the lower the number, the more it will help
Visible Transmittance refers to how much
reduce the use of air conditioning and as a
visible light comes through a product (the 0.40 result reduce electrical bills and energy use).
closer to 1.0, the more light is transmitted).

WDMA Hallmark Certification verifies WINDOW & DOOR
MANUFACTURERS ASSOCIATION Licensee: 129-H-816
the performance ratings of this product were WDMA Andersen Corporation
Hallmark Certified A-Series Casement Window
tested by a third-party testing laboratory. www.wdma.com
Manufacturer stipulates Hallmark Certification as indicated below.
STANDARD RATING
AAMA/WDMA/CSA 101/I.S.2/A440-11 Class LC-PG50 Size Tested 35.3" X 71.3"
Test Standards DP+50/-50 Performance Grade (PG) and
AAMA/WDMA/CSA 101/I.S.2/A440-08 Class H-LC50 Size Tested 35.3" X 71.3"
DP+50/-50
AAMA/WDMA/CSA 101/I.S.2/A440-08 Class LC-PG50 - 895mm x 1353mm Design Pressure (DP) Ratings
A440S1-09 Positive/Negative Design Pressure (DP) = 2400 Pa/-2400 Pa
Water Penetration Resistance Test Pressure = 510 Pa
Canadian Air Infiltration/Exfiltration = A1
FL 13081
Glazing: 3.0mm AN outer/3.0mm AN inner Glass Construction used with
Complies with HUD UM Bulletin No. 111
this product type

Combination Designs, & Installation
Meets or exceeds CEC & IECC Air Infiltration Requirements of 0.2 CFM/sq.ft. or lower.
WDMA Hallmark Certification Program
• NFRC ratings are based on modeling by a third-party agency as validated by an independent test lab in compliance with NFRC program and procedural requirements. Product Performance
