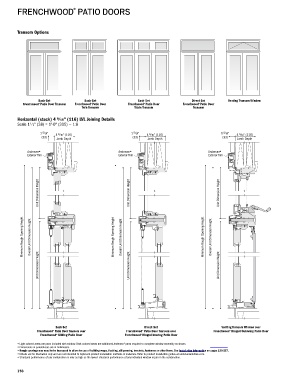

FRENCHWOOD PATIO DOORS
®

Transom Options

Sash-Set Sash-Set Sash-Set Direct-Set Venting Transom Window
Frenchwood ® Patio Door Transom Frenchwood ® Patio Door Frenchwood ® Patio Door Frenchwood ® Patio Door
Twin Transom Triple Transom Transom

Horizontal (stack) 4 ⁄16" (116) LVL Joining Details
9
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8
1
1 5 ⁄16" 4 9 ⁄16" (116) 1 5 ⁄16" 4 9 ⁄16" (116) 1 5 ⁄16" 4 9 ⁄16" (116)
(33) Jamb Depth (33) Jamb Depth (33) Jamb Depth

Andersen® Andersen® Andersen®
Exterior Trim Exterior Trim Exterior Trim

Unit Dimension Height Unit Dimension Height Unit Dimension Height

Minimum Rough Opening Height Overall Unit Dimension Height Minimum Rough Opening Height Overall Unit Dimension Height Minimum Rough Opening Height Overall Unit Dimension Height

Unit Dimension Height Unit Dimension Height Unit Dimension Height

Sash-Set Direct-Set Venting Transom Window over
Frenchwood ® Patio Door Transom over Frenchwood ® Patio Door Transom over Frenchwood ® Hinged Outswing Patio Door
Frenchwood ® Gliding Patio Door Frenchwood ® Hinged Inswing Patio Door
• Light-colored areas are parts included with window. Dark-colored areas are additional Andersen ® parts required to complete window assembly as shown.
• Dimensions in parentheses are in millimeters.
• Rough openings may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 236-237.
• Details are for illustration only and are not intended to represent product installation methods or materials. Refer to product installation guides at andersenwindows.com.
• Structural performance of any combination is only as high as the lowest structural performance of any individual window or join in the combination.

158
