A-SERIES

9

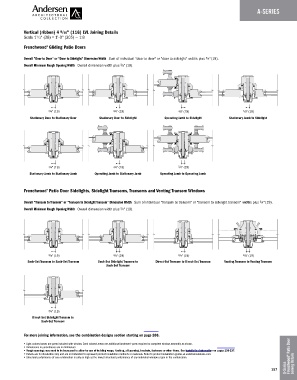

Vertical (ribbon) 4 ⁄16" (116) LVL Joining Details
1
Scale 1 ⁄ 2" (38) = 1'-0" (305) — 1:8
Frenchwood Gliding Patio Doors
®
3
Overall "Door to Door" or "Door to Sidelight" Dimension Width Sum of individual "door to door" or "door to sidelight" widths plus ⁄4" (19).
3
Overall Minimum Rough Opening Width Overall dimension width plus ⁄4" (19).

3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19)
Stationary Door to Stationary Door Stationary Door to Sidelight Operating Jamb to Sidelight Stationary Jamb to Sidelight

3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19)
Stationary Jamb to Stationary Jamb Operating Jamb to Stationary Jamb Operating Jamb to Operating Jamb

Frenchwood Patio Door Sidelights, Sidelight Transoms, Transoms and Venting Transom Windows
®

Overall "Transom to Transom" or "Transom to Sidelight Transom" Dimension Width Sum of individual "transom to transom" or "transom to sidelight transom" widths plus ⁄4" (19).
3
3
Overall Minimum Rough Opening Width Overall dimension width plus ⁄4" (19).

3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19) 3 ⁄4" (19)
Sash-Set Transom to Sash-Set Transom Sash-Set Sidelight Transom to Direct-Set Transom to Direct-Set Transom Venting Transom to Venting Transom
Sash-Set Transom

3 ⁄4" (19)
Direct-Set Sidelight Transom to
Sash-Set Transom

For more joining information, see the combination designs section starting on page 206.
• Light-colored areas are parts included with window. Dark-colored areas are additional Andersen ® parts required to complete window assembly as shown.
• Dimensions in parentheses are in millimeters.
• Rough openings may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 236-237.
• Details are for illustration only and are not intended to represent product installation methods or materials. Refer to product installation guides at andersenwindows.com. Frenchwood ® Patio Door
• Structural performance of any combination is only as high as the lowest structural performance of any individual window or join in the combination. Joining Details
A-Series
157
