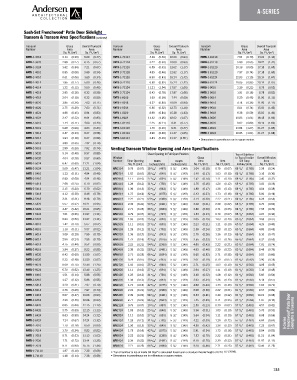

Page 155 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

A-SERIES

Sash-Set Frenchwood Patio Door Sidelight Sash-Set Frenchwood Patio Door Sidelight Sash-Set Frenchwood Patio Door Sidelight
®
®
®
Transom & Transom Area Specifications (continued) Transom & Transom Area Specifications Transom & Transom Area Specifications
Transom Glass Overall Transom Transom Glass Overall Transom Transom Glass Overall Transom
Number Area Area Number Area Area Number Area Area
Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
FWTD-1-3318 2.13 (0.20) 5.09 (0.47) FWTD-1-71114 4.28 (0.40) 10.00 (0.93) FWTD-1-81118 7.54 (0.70) 14.22 (1.32)
FWTD-1-3320 2.88 (0.27) 6.15 (0.57) FWTD-3-71114 3.22 (0.30) 10.00 (0.93) FWTD-3-81118 5.90 (0.55) 14.22 (1.32)
FWTD-1-3324 3.62 (0.34) 7.21 (0.67) FWTD-1-71118 6.59 (0.61) 12.62 (1.17) FWTD-1-81120 10.18 (0.95) 17.18 (1.60)
FWTD-1-4010 0.85 (0.08) 3.69 (0.34) FWTD-3-71118 4.95 (0.46) 12.62 (1.17) FWTD-3-81120 7.97 (0.74) 17.18 (1.60)
FWTD-2-4010 0.61 (0.06) 3.69 (0.34) FWTD-1-71120 8.90 (0.83) 15.24 (1.42) FWTD-1-81124 12.83 (1.19) 20.14 (1.87)
FWTD-1-4014 1.85 (0.17) 5.00 (0.46) FWTD-3-71120 6.69 (0.62) 15.24 (1.42) FWTD-3-81124 10.05 (0.93) 20.14 (1.87)
FWTD-2-4014 1.32 (0.12) 5.00 (0.46) FWTD-1-71124 11.21 (1.04) 17.87 (1.66) FWTD-1-9610 2.39 (0.22) 8.78 (0.82)
FWTD-1-4018 2.85 (0.26) 6.32 (0.59) FWTD-3-71124 8.43 (0.78) 17.87 (1.66) FWTD-3-9610 1.91 (0.18) 8.78 (0.82)
FWTD-2-4018 2.04 (0.19) 6.32 (0.59) FWTD-1-8010 1.99 (0.18) 7.44 (0.69) FWTD-1-9614 5.20 (0.48) 11.90 (1.11)
FWTD-1-4020 3.85 (0.36) 7.63 (0.71) FWTD-1-8014 4.32 (0.40) 10.09 (0.94) FWTD-3-9614 4.14 (0.38) 11.90 (1.11)
FWTD-2-4020 2.75 (0.26) 7.63 (0.71) FWTD-1-8018 6.66 (0.62) 12.73 (1.18) FWTD-1-9618 8.01 (0.74) 15.03 (1.40)
FWTD-1-4024 4.86 (0.45) 8.94 (0.83) FWTD-1-8020 8.99 (0.84) 15.38 (1.43) FWTD-3-9618 6.38 (0.59) 15.03 (1.40)
FWTD-2-4024 3.47 (0.32) 8.94 (0.83) FWTD-1-8024 11.32 (1.05) 18.02 (1.67) FWTD-1-9620 10.83 (1.01) 18.15 (1.69)
FWTD-1-5010 1.14 (0.11) 4.63 (0.43) FWTD-1-81110 2.25 (0.21) 8.31 (0.77) FWTD-3-9620 8.62 (0.80) 18.15 (1.69)
FWTD-2-5010 0.89 (0.08) 4.63 (0.43) FWTD-3-81110 1.76 (0.16) 8.31 (0.77) FWTD-1-9624 13.64 (1.27) 21.27 (1.98)
FWTD-1-5014 2.47 (0.23) 6.27 (0.58) FWTD-1-81114 4.90 (0.46) 11.27 (1.05) FWTD-3-9624 10.85 (1.01) 21.27 (1.98)
FWTD-2-5014 1.94 (0.18) 6.27 (0.58) FWTD-3-81114 3.83 (0.36) 11.27 (1.05 )
• Dimensions in parentheses are in square meters.
FWTD-1-5018 3.80 (0.35) 7.92 (0.74)
FWTD-2-5018 2.99 (0.28) 7.92 (0.74) Venting Transom Window Opening and Area Specifications
FWTD-1-5020 5.14 (0.48) 9.57 (0.89) Clear Opening in Full Open Position Top of Subfloor
FWTD-2-5020 4.04 (0.38) 9.57 (0.89) Window Glass to Top of Inside Overall Window
Number Clear Opening Width Depth Area Vent Sill Stop Area
FWTD-1-5024 6.47 (0.60) 11.21 (1.04) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Inches/(mm) Sq. Ft./(m 2 )
FWTD-2-5024 5.09 (0.47) 11.21 (1.04) ATV2114 0.79 (0.07) 19 3 / 16 " (487) 5 7 / 8 " (149) 1.04 (0.10) 0.79 (0.07) 69 1 / 2 " (1765) 2.56 (0.24)
FWTD-1-5410 1.23 (0.11) 4.94 (0.46) ATV2714 1.03 (0.10) 25 3 / 16 " (640) 5 7 / 8 " (149) 1.40 (0.13) 1.03 (0.10) 69 1 / 2 " (1765) 3.19 (0.30)
FWTD-2-5410 0.99 (0.09) 4.94 (0.46) ATV2914 1.11 (0.10) 27 3 / 16 " (691) 5 7 / 8 " (149) 1.52 (0.14) 1.11 (0.10) 69 1 / 2 " (1765) 3.40 (0.32)
FWTD-1-5414 2.68 (0.25) 6.70 (0.62) ATV3114 1.28 (0.12) 31 3 / 16 " (792) 5 7 / 8 " (149) 1.76 (0.16) 1.28 (0.12) 69 1 / 2 " (1765) 3.83 (0.36)
FWTD-2-5414 2.15 (0.20) 6.70 (0.62) ATV3314 1.36 (0.13) 33 3 / 16 " (843) 5 7 / 8 " (149) 1.88 (0.17) 1.36 (0.13) 69 1 / 2 " (1765) 4.04 (0.38)
FWTD-1-5418 4.12 (0.38) 8.46 (0.79) ATV4014 1.73 (0.16) 42 5 / 16 " (1075) 5 7 / 8 " (149) 2.43 (0.23) 1.73 (0.16) 69 1 / 2 " (1765) 5.00 (0.46)
FWTD-2-5418 3.31 (0.31) 8.46 (0.79) ATV5014 2.22 (0.21) 54 5 / 16 " (1380) 5 7 / 8 " (149) 3.14 (0.29) 2.22 (0.21) 69 1 / 2 " (1765) 6.28 (0.58)
FWTD-1-5420 5.57 (0.52) 10.21 (0.95) ATV5414 2.39 (0.22) 58 5 / 16 " (1481) 5 7 / 8 " (149) 3.38 (0.31) 2.39 (0.22) 69 1 / 2 " (1765) 6.70 (0.62)
FWTD-2-5420 4.47 (0.42) 10.21 (0.95) ATV6014 2.71 (0.25) 66 5 / 16 " (1684) 5 7 / 8 " (149) 3.86 (0.36) 2.71 (0.25) 69 1 / 2 " (1765) 7.55 (0.70)
FWTD-1-5424 7.01 (0.65) 11.97 (1.11) ATV2118 0.79 (0.07) 19 3 / 16 " (487) 5 7 / 8 " (149) 1.53 (0.14) 0.79 (0.07) 65 1 / 2 " (1664) 3.23 (0.30)
FWTD-2-5424 5.63 (0.52) 11.97 (1.11) ATV2718 1.03 (0.10) 25 3 / 16 " (640) 5 7 / 8 " (149) 2.05 (0.19) 1.03 (0.10) 65 1 / 2 " (1664) 4.03 (0.37)
FWTD-1-6010 1.42 (0.13) 5.57 (0.52) ATV2918 1.11 (0.10) 27 3 / 16 " (691) 5 7 / 8 " (149) 2.23 (0.21) 1.11 (0.10) 65 1 / 2 " (1664) 4.29 (0.40)
FWTD-2-6010 1.18 (0.11) 5.57 (0.52) ATV3118 1.28 (0.12) 31 3 / 16 " (792) 5 7 / 8 " (149) 2.58 (0.24) 1.28 (0.12) 65 1 / 2 " (1664) 4.83 (0.45)
FWTD-1-6014 3.09 (0.29) 7.55 (0.70) ATV3318 1.36 (0.13) 33 3 / 16 " (843) 5 7 / 8 " (149) 2.75 (0.26) 1.36 (0.13) 65 1 / 2 " (1664) 5.10 (0.47)
FWTD-2-6014 2.56 (0.24) 7.55 (0.70) ATV4018 1.73 (0.16) 42 5 / 16 " (1075) 5 7 / 8 " (149) 3.55 (0.33) 1.73 (0.16) 65 1 / 2 " (1664) 6.32 (0.59)
FWTD-1-6018 4.75 (0.44) 9.52 (0.88) ATV5018 2.22 (0.21) 54 5 / 16 " (1380) 5 7 / 8 " (149) 4.60 (0.43) 2.22 (0.21) 65 1 / 2 " (1664) 7.92 (0.74)
FWTD-2-6018 3.94 (0.37) 9.52 (0.88) ATV5418 2.39 (0.22) 58 5 / 16 " (1481) 5 7 / 8 " (149) 4.95 (0.46) 2.39 (0.22) 65 1 / 2 " (1664) 8.46 (0.79)
FWTD-1-6020 6.42 (0.60) 11.50 (1.07) ATV6018 2.71 (0.25) 66 5 / 16 " (1684) 5 7 / 8 " (149) 5.65 (0.52) 2.71 (0.25) 65 1 / 2 " (1664) 9.53 (0.89)
FWTD-2-6020 5.32 (0.49) 11.50 (1.07) ATV2120 0.79 (0.07) 19 3 / 16 " (487) 5 7 / 8 " (149) 2.01 (0.19) 0.79 (0.07) 61 1 / 2 " (1562) 3.90 (0.36)
FWTD-1-6024 8.09 (0.75) 13.48 (1.25) ATV2720 1.03 (0.10) 25 3 / 16 " (640) 5 7 / 8 " (149) 2.71 (0.25) 1.03 (0.10) 61 1 / 2 " (1562) 4.86 (0.45)
FWTD-2-6024 6.70 (0.62) 13.48 (1.25) ATV2920 1.11 (0.10) 27 3 / 16 " (691) 5 7 / 8 " (149) 2.94 (0.27) 1.11 (0.10) 61 1 / 2 " (1562) 5.19 (0.48)
FWTD-1-6410 1.51 (0.14) 5.88 (0.55) ATV3120 1.28 (0.12) 31 3 / 16 " (792) 5 7 / 8 " (149) 3.40 (0.32) 1.28 (0.12) 61 1 / 2 " (1562) 5.83 (0.54)
FWTD-2-6410 1.27 (0.12) 5.88 (0.55) ATV3320 1.36 (0.13) 33 3 / 16 " (843) 5 7 / 8 " (149) 3.63 (0.34) 1.36 (0.13) 61 1 / 2 " (1562) 6.16 (0.57)
FWTD-1-6414 3.29 (0.31) 7.97 (0.74) ATV4020 1.73 (0.16) 42 5 / 16 " (1075) 5 7 / 8 " (149) 4.68 (0.44) 1.73 (0.16) 61 1 / 2 " (1562) 7.63 (0.71)
FWTD-2-6414 2.76 (0.26) 7.97 (0.74) ATV5020 2.22 (0.21) 54 5 / 16 " (1380) 5 7 / 8 " (149) 6.06 (0.56) 2.22 (0.21) 61 1 / 2 " (1562) 9.57 (0.89)
FWTD-1-6418 5.07 (0.47) 10.06 (0.93) ATV5420 2.39 (0.22) 58 5 / 16 " (1481) 5 7 / 8 " (149) 6.53 (0.61) 2.39 (0.22) 61 1 / 2 " (1562) 10.21 (0.95)
FWTD-2-6418 4.26 (0.40) 10.06 (0.93) ATV6020 2.71 (0.25) 66 5 / 16 " (1684) 5 7 / 8 " (149) 7.45 (0.69) 2.71 (0.25) 61 1 / 2 " (1562) 1.07 (0.10)
FWTD-1-6420 6.85 (0.64) 12.15 (1.13) ATV2124 0.79 (0.07) 19 3 / 16 " (487) 5 7 / 8 " (149) 2.50 (0.23) 0.79 (0.07) 57 1 / 2 " (1461) 4.57 (0.42)
FWTD-2-6420 5.75 (0.53) 12.15 (1.13) ATV2724 1.03 (0.10) 25 3 / 16 " (640) 5 7 / 8 " (149) 3.36 (0.31) 1.03 (0.10) 57 1 / 2 " (1461) 5.70 (0.53) Frenchwood ® Patio Door
FWTD-1-6424 8.63 (0.80) 14.24 (1.32) ATV2924 1.11 (0.10) 27 3 / 16 " (691) 5 7 / 8 " (149) 3.64 (0.34) 1.11 (0.10) 57 1 / 2 " (1461) 6.08 (0.56) Sidelights & Transoms
FWTD-2-6424 7.24 (0.67) 14.24 (1.32) ATV3124 1.28 (0.12) 31 3 / 16 " (792) 5 7 / 8 " (149) 4.22 (0.39) 1.28 (0.12) 57 1 / 2 " (1461) 6.84 (0.64)
FWTD-1-7010 1.70 (0.16) 6.50 (0.60) ATV3324 1.36 (0.13) 33 3 / 16 " (843) 5 7 / 8 " (149) 4.50 (0.42) 1.36 (0.13) 57 1 / 2 " (1461) 7.23 (0.67) A-Series
FWTD-1-7014 3.70 (0.34) 8.82 (0.82) ATV4024 1.73 (0.16) 42 5 / 16 " (1075) 5 7 / 8 " (149) 5.81 (0.54) 1.73 (0.16) 57 1 / 2 " (1461) 8.94 (0.83)
FWTD-1-7018 5.71 (0.53) 11.13 (1.03) ATV5024 2.22 (0.21) 54 5 / 16 " (1380) 5 7 / 8 " (149) 7.53 (0.70) 2.22 (0.21) 57 1 / 2 " (1461) 11.21 (1.04)
FWTD-1-7020 7.71 (0.72) 13.44 (1.25) ATV5424 2.39 (0.22) 58 5 / 16 " (1481) 5 7 / 8 " (149) 8.10 (0.75) 2.39 (0.22) 57 1 / 2 " (1461) 11.97 (1.11)
FWTD-1-7024 9.71 (0.90) 15.75 (1.46) ATV6024 2.71 (0.25) 66 5 / 16 " (1684) 5 7 / 8 " (149) 9.24 (0.86) 2.71 (0.25) 57 1 / 2 " (1461) 13.49 (1.25)
FWTD-1-71110 1.97 (0.18) 7.38 (0.69)
1
• "Top of Subfloor to Top of Inside Sill Stop" is calculated based upon a structural header height of 6'-10 / 2 " (2096) .
FWTD-3-71110 1.48 (0.14) 7.38 (0.69) • Dimensions in parentheses are in millimeters or square meters.
153
