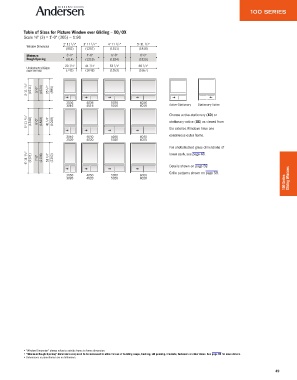

Table of Sizes for Picture Window over Gliding − XO/OX
1
Scale ⁄8" (3) = 1'-0" (305) — 1:96
2'-11 1 /2" 3'-11 1 /2" 4'-11 1 /2" 5'-11 1 /2"
Window Dimension
(902) (1207) (1511) (1816)
Minimum 3'-0" 4'-0" 5'-0" 6'-0"
Rough Opening (914) (1219) (1524) (1829)
29 1 /4" 41 1 /4" 53 1 /4" 65 1 /4"
Unobstructed Glass
(upper sash only) (743) (1048) (1353) (1657)

4'-11 1 /2" (1511) 5'-0" (1524) 35 1 / 4" (895)

3036 4036 5036 6036
3016 4016 5016 6016 Active-Stationary Stationary-Active
Choose active-stationary (XO) or
5'-11 1 /2" (1816) 6'-0" (1829) 41 1 / 4" (1048) stationary-active (OX) as viewed from
the exterior. Windows have one
continuous outer frame.
3040 4040 5040 6040
3020 4020 5020 6020
For unobstructed glass dimensions of
6'-11 1 /2" (2121) 7'-0" (2134) 53 1 / 4" (1353) lower sash, see page 48.

Details shown on page 59.
Grille patterns shown on page 58.
100 Series
3050 4050 5050 6050
3020 4020 5020 6020 Gliding Windows

• "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See page 98 for more details.
• Dimensions in parentheses are in millimeters.
