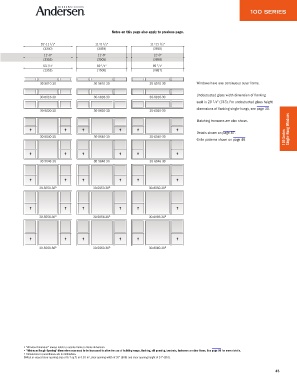

Page 47 - Andersen Windows & Patio Doors 2017-18 100 Series Product Guide for Professionals

Table of Sizes for Picture Window with Flanking 30-Wide Single-Hungs Notes on this page also apply to previous page.
1
Scale ⁄8" (3) = 1'-0" (305) — 1:96
8'-11 1 /2" 9'-5 1 /2" 9'-11 1 /2" 10'-5 1 /2" 10'-11 1 /2" 11'-5 1 /2" 11'-11 1 /2"
Window Dimension
(2731) (2883) (3035) (3188) (3340) (3493) (3645)
Minimum 9'-0" 9'-6" 10'-0" 10'-6" 11'-0" 11'-6" 12'-0"
Rough Opening (2743) (2896) (3048) (3200) (3353) (3505) (3658)
Unobstructed Glass 29 1 /4" 35 1 /4" 41 1 /4" 47 1 /4" 53 1 /4" 59 1 /4" 65 1 /4"
(center sash only) (743) (895) (1048) (1200) (1353) (1505) (1657)
11 1 /2" (292) 1'-0" (305) 5 1 / 4" (133)
30-3010-30 30-3610-30 30-4010-30 30-4610-30 30-5010-30 30-5610-30 30-6010-30 Windows have one continuous outer frame.
1'-5 1 /2" (445) 1'-6" (457) 11 1 / 4" (286) 30-3016-30 30-3616-30 30-4016-30 30-4616-30 30-5016-30 30-5616-30 30-6016-30 Unobstructed glass width dimension of flanking

1'-11 1 /2" (597) 2'-0" (610) 17 1 / 4" (438) 30-3020-30 30-3620-30 30-4020-30 30-4620-30 30-5020-30 30-5620-30 30-6020-30 sash is 29 ⁄ 4" (743). For unobstructed glass height
1
dimensions of flanking single-hungs, see page 30.

3'-11 1 /2" (1207) 4'-0" (1219) 41 1 / 4" (1048) Matching transoms are also shown. Single-Hung Windows

30-3040-30 30-3640-30 30-4040-30 30-4640-30 30-5040-30 30-5640-30 30-6040-30 Details shown on page 47. 100 Series
Grille patterns shown on page 46.
4'-5 1 /2" (1359) 4'-6" (1372) 47 1 / 4" (1200)

30-3046-30 30-3646-30 30-4046-30 30-4646-30 30-5046-30 30-5646-30 30-6046-30
4'-11 1 /2" (1511) 5'-0" (1524) 53 1 / 4" (1353)

30-3050-30 ◊ 30-3650-30 ◊ 30-4050-30 ◊ 30-4650-30 ◊ 30-5050-30 ◊ 30-5650-30 ◊ 30-6050-30 ◊

5'-5 1 /2" (1664) 5'-6" (1676) 59 1 / 4" (1505)

30-3056-30 ◊ 30-3656-30 ◊ 30-4056-30 ◊ 30-4656-30 ◊ 30-5056-30 ◊ 30-5656-30 ◊ 30-6056-30 ◊

5'-11 1 /2" (1816) 6'-0" (1829) 65 1 / 4" (1657)

30-3060-30 ◊ 30-3660-30 ◊ 30-4060-30 ◊ 30-4660-30 ◊ 30-5060-30 ◊ 30-5660-30 ◊ 30-6060-30 ◊

• "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See page 98 for more details.
• Dimensions in parentheses are in millimeters.
◊ Meet or exceed clear opening area of 5.7 sq.ft. or 0.53 m 2 , clear opening width of 20" (508) and clear opening height of 24" (610).
