Page 38 - Andersen Windows & Patio Doors 2017-18 100 Series Product Guide for Professionals

SINGLE-HUNG WINDOWS

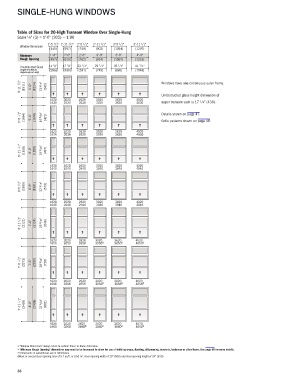

Table of Sizes for 20-High Transom Window Over Single-Hung
1
Scale ⁄8" (3) = 1'-0" (305) — 1:96
1'-5 1 /2" 1'-11 1 /2" 2'-5 1 /2" 2'-11 1 /2" 3'-5 1 /2" 3'-11 1 /2"
Window Dimension
(445) (597) (749) (902) (1054) (1207)
Minimum 1'-6" 2'-0" 2'-6" 3'-0" 3'-6" 4'-0"
Rough Opening (457) (610) (762) (914) (1067) (1219)
Unobstructed Glass 11 1 / 4" 17 1 / 4" 23 1 /4" 29 1 /4" 35 1 /4" 41 1 /4"
(height of individual (286) (438) (591) (743) (895) (1048)
single-hung sash only)
4'-11 1 /2" (1511) 5'-0" (1524) 13 9 / 16" (345) Windows have one continuous outer frame.

Unobstructed glass height dimension of
1620 2020 2620 3020 3620 4020
1630 2030 2630 3030 3630 4030 upper transom sash is 17 1 ⁄ 4" (438).

5'-5 1 /2" (1664) 5'-6" (1676) 16 9 / 16" (421) Details shown on page 47.
Grille patterns shown on page 46.

1620 2020 2620 3020 3620 4020
1636 2036 2636 3036 3636 4036

5'-11 1 /2" (1816) 6'-0" (1829) 19 9 / 16" (497)

1620 2020 2620 3020 3620 4020
1640 2040 2640 3040 3640 4040

6'-5 1 /2" (1969) 6'-6" (1981) 22 9 / 16" (573)

1620 2020 2620 3020 3620 4020
1646 2046 2646 3046 3646 4046

6'-11 1 /2" (2121) 7'-0" (2134) 25 9 / 16" (649)

1620 2020 2620 3020 3620 4020
1650 2050 2650 3050 ◊ 3650 ◊ 4050 ◊

7'-5 1 /2" (2273) 7'-6" (2286) 28 9 / 16" (726)

1620 2020 2620 3020 3620 4020
1656 2056 2656 3056 ◊ 3656 ◊ 4056 ◊

7'-11 1 /2" (2426) 8'-0" (2438) 31 9 / 16" (802)

1620 2020 2620 3020 3620 4020
1660 2060 2660 ◊ 3060 ◊ 3660 ◊ 4060 ◊

• "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See page 98 for more details.
• Dimensions in parentheses are in millimeters.
◊Meet or exceed clear opening area of 5.7 sq.ft. or 0.53 m 2 , clear opening width of 20" (508) and clear opening height of 24" (610).

36
