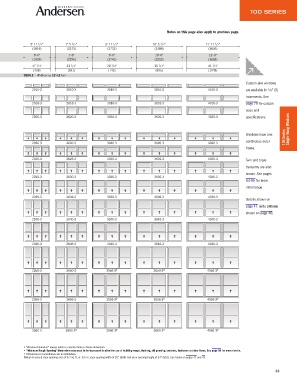

Table of Twin and Triple Single-Hung Window Sizes Notes on this page also apply to previous page.
1
Scale ⁄8" (3) = 1'-0" (305) — 1:96
2'-11 1 /2" 3'-11 1 /2" 4'-11 1 /2" 5'-11 1 /2" 6'-11 1 /2" 7'-11 1 /2" 4'-5 1 /2" 5'-11 1 /2" 7'-5 1 /2" 8'-11 1 /2" 10'-5 1 /2" 11'-11 1 /2"
Window Dimension
(902) (1207) (1511) (1816) (2121) (2426) (1359) (1816) (2273) (2731) (3188) (3645)
Minimum 3'-0" 4'-0" 5'-0" 6'-0" 7'-0" 8'-0" 4'-6" 6'-0" 7'-6" 9'-0" 10'-6" 12'-0"
Rough Opening (914) (1219) (1524) (1829) (2134) (2438) (1372) (1829) (2286) (2743) (3200) (3658)
11 1 /4" 17 1 /4" 23 1 /4" 29 1 /4" 35 1 /4" 41 1 /4" 11 1 /4" 17 1 /4" 23 1 /4" 29 1 /4" 35 1 /4" 41 1 /4"
Unobstructed Glass
(width of single sash) (286) (438) (591) (743) (895) (1048) (286) (438) (591) (743) (895) (1048)
CUSTOM WIDTHS TWIN — 2'-11 1 ⁄2" to 7'-11 1 ⁄2" TRIPLE — 4'-5 1 ⁄2" to 11'-11 1 ⁄2"
11 1 /2" (292) 1'-0" (305) 5 1 / 4" (133) 1610-2 2010-2 2610-2 3010-2 3610-2 4010-2 1610-3 2010-3 2610-3 3010-3 3610-3 4010-3 Custom-size windows
1
are available in ⁄ 8" (3)
1'-5 1 /2" (445) 1'-6" (457) 11 1 / 4" (286) 1616-2 2016-2 2616-2 3016-2 3616-2 4016-2 1616-3 2016-3 2616-3 3016-3 3616-3 4016-3 increments. See
page 79 for custom
1'-11 1 /2" (597) 2'-0" (610) 17 1 / 4" (438) CUSTOM HEIGHTS — 1'-11 1 ⁄2" to 5'-11 1 ⁄2" 1620-2 2020-2 2620-2 3020-2 3620-2 4020-2 1620-3 2020-3 2620-3 3020-3 3620-3 4020-3 sizes and
specifications.
1'-11 1 /2" (597) 2'-0" (610) 7 9 / 16" (192) 1620-2 2020-2 2620-2 3020-2 3620-2 4020-2 1620-3 2020-3 2620-3 3020-3 3620-3 4020-3 Windows have one 100 Series Single-Hung Windows
continuous outer
2'-5 1 /2" (749) 2'-6" (762) 10 9 / 16" (268) frame.
1626-2 2026-2 2626-2 3026-2 3626-2 4026-2 1626-3 2026-3 2626-3 3026-3 3626-3 4026-3 Twin and triple
2'-11 1 /2" (902) 3'-0" (914) 13 9 / 16" (345) transoms are also
1630-2 2030-2 2630-2 3030-2 3630-2 4030-2 1630-3 2030-3 2630-3 3030-3 3630-3 4030-3 shown. See pages
64-65 for more
3'-5 1 /2" (1054) 3'-6" (1067) 16 9 / 16" (421) information.
1636-2 2036-2 2636-2 3036-2 3636-2 4036-2 1636-3 2036-3 2636-3 3036-3 3636-3 4036-3
Details shown on
3'-11 1 /2" (1207) 4'-0" (1219) 19 9 / 16" (497) page 47. Grille patterns
shown on page 46.
1640-2 2040-2 2640-2 3040-2 3640-2 4040-2 1640-3 2040-3 2640-3 3040-3 3640-3 4040-3
4'-5 1 /2" (1359) 4'-6" (1372) 22 9 / 16" (573)
1646-2 2046-2 2646-2 3046-2 3646-2 4046-2 1646-3 2046-3 2646-3 3046-3 3646-3 4040-3
4'-11 1 /2" (1511) 5'-0" (1524) 25 9 / 16" (649)
1650-2 2050-2 2650-2 3050-2 ◊ 3650-2 ◊ 4050-2 ◊ 1650-3 2050-3 2650-3 3050-3 ◊ 3650-3 ◊ 4050-3 ◊
5'-5 1 /2" (1664) 5'-6" (1676) 28 9 / 16" (726)
1656-2 2056-2 2656-2 3056-2 ◊ 3656-2 ◊ 4056-2 ◊ 1656-3 2056-3 2656-3 3056-3 ◊ 3656-3 ◊ 4056-3 ◊
5'-11 1 /2" (1816) 6'-0" (1829) 31 9 / 16" (802)
1660-2 2060-2 2660-2 ◊ 3060-2 ◊ 3660-2 ◊ 4060-2 ◊ 1660-3 2060-3 2660-3 ◊ 3060-3 ◊ 3660-3 ◊ 4060-3 ◊
• "Window Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See page 98 for more details.
• Dimensions in parentheses are in millimeters.
◊Meet or exceed clear opening area of 5.7 sq. ft. or .53 m 2 , clear opening width of 20" (508) and clear opening height of 24" (610). See tables on pages 41 and 43.
