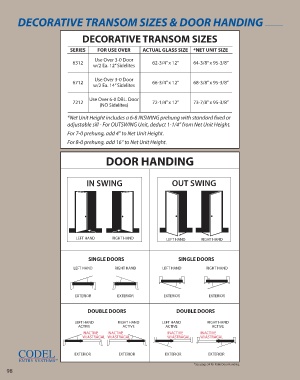

DECORATIVE TRANSOM SIZES & DOOR HANDING

DECORATIVE TRANSOM SIZES

SERIES FOR USE OVER ACTUAL GLASS SIZE *NET UNIT SIZE
Use Over 3-0 Door
6312 62-3/4” x 12” 64-3/8” x 95-3/8”
w/2 Ea. 12” Sidelites

Use Over 3-0 Door
6712 w/2 Ea. 14” Sidelites 66-3/4” x 12” 68-3/8” x 95-3/8”

Use Over 6-0 DBL. Door
7212 72-1/4” x 12” 73-7/8” x 95-3/8”
(NO Sidelites)

*Net Unit Height includes a 6-8 INSWING prehung with standard fixed or
adjustable sill - For OUTSWING Unit, deduct 1-1/4” from Net Unit Height.
For 7-0 prehung, add 4” to Net Unit Height.
For 8-0 prehung, add 16” to Net Unit Height.

DOOR HANDING

IN SWING OUT SWING

LEFT HAND RIGHT HAND LEFT HAND RIGHT HAND

SINGLE DOORS SINGLE DOORS

LEFT HAND RIGHT HAND LEFT HAND RIGHT HAND

EXTERIOR EXTERIOR EXTERIOR EXTERIOR

DOUBLE DOORS DOUBLE DOORS

LEFT HAND RIGHT HAND LEFT HAND RIGHT HAND
ACTIVE ACTIVE ACTIVE ACTIVE
INACTIVE INACTIVE INACTIVE INACTIVE
W/ASTRAGAL W/ASTRAGAL W/ASTRAGAL W/ASTRAGAL

EXTERIOR EXTERIOR EXTERIOR EXTERIOR
TM
*See page 34 for Patio Door Handing.
