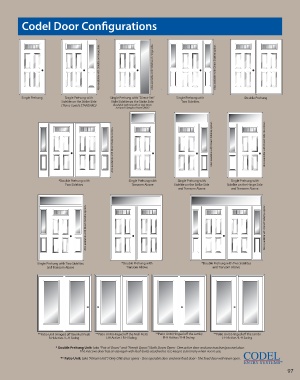

Codel Door Configurations

Also available with Sidelite on hinge side. Also available with Sidelite on hinge side. Also available with Direct Sidelite option.

Single Prehung Single Prehung with Single Prehung with “Direct-Set” Single Prehung with Double Prehung
Sidelite on the Strike Side Style Sidelite on the Strike Side Two Sidelites
(This is Codel’s STANDARD) (Available with Smooth or Oak Grain
Textured Fiberglass Panel ONLY)

Also available with Direct Sidelite option. Also available with Direct Sidelite option. Also available with Direct Sidelite option.

*Double Prehung with Single Prehung with Single Prehung with Single Prehung with
Two Sidelites Transom Above Sidelite on the Strike Side Sidelite on the Hinge Side
and Transom Above and Transom Above

Also available with Direct Sidelite option. Also available with Direct Sidelite option.

Single Prehung with Two Sidelites *Double Prehung with *Double Prehung with Two Sidelites
and Transom Above Transom Above and Transom Above

**Patio Unit (Hinged o the Mull Post) **Patio Unit (Hinged o the Mull Post) **Patio Unit (Hinged o the Jamb) **Patio Unit (Hinged o the Jamb)
R-H Active / L-H Swing L-H Active / R-H Swing R-H Active / R-H Swing L-H Active / L-H Swing
* Double Prehung Unit: (aka “Pair of Doors” and “French Doors”) Both Doors Open - One active door and one inactive (passive) door.
The inactive door has an astragal with ush bolts attached to it to keep it stationary when not in use.
** Patio Unit: (aka “Atrium Unit”) Only ONE door opens - One operable door and one xed door - The xed door will never open.
