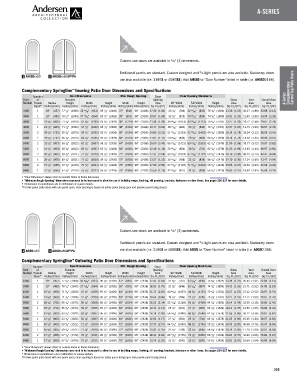

Custom-size doors are available in ⁄8" (3) increments.
Traditional panels are standard. Custom designed and 3 ⁄4-light panels are also available. Stationary doors
AHISDxx80 AHISDxx80AP /PA
are also available (i.e. 3180S or 4080SS). Add AHISD to "Door Number" listed in table (i.e. AHISD2168).

Complementary Springline Inswing Patio Door Dimensions and Specifications Complementary Curved Top Patio Doors
™
Number Door Dimensions Min. Rough Opening Clear Clear Opening Maximums
Door of Shoulder Opening Glass Vent Overall Door A-Series
Number Panels Radius Height Width Height Width Height Area 90 ° Width Full Width Height Area Area Area
Open* Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
3180 1 18" (457) 77 1 / 2 " (1969) 35 15 / 16 " (913) 95 1 / 2 " (2426) 37" (940) 96" (2438) 17.26 (1.60) 30 7 / 8 " (784) 32 13 / 16 " (833) 75 3 / 4 " (1924) 13.28 (1.23) 20.27 (1.88) 22.88 (2.13)
3380 1 19" (483) 76 1 / 2 " (1943) 37 15 / 16 " (964) 95 1 / 2 " (2426) 39" (991) 96" (2438) 18.07 (1.68) 32 7 / 8 " (835) 34 13 / 16 " (884) 74 3 / 4 " (1899) 14.31 (1.33) 21.45 (1.99) 24.09 (2.24)
4080 2 23 5 / 8 " (600) 71 7 / 8 " (1826) 47 1 / 4 " (1200) 95 1 / 2 " (2426) 48" (1219) 96" (2438) 21.34 (1.98) 39 15 / 16 " (1014) 43 13 / 16 " (1113) 70 1 / 8 " (1781) 13.27 (1.23) 26.72 (2.48) 29.67 (2.76)
4080 1 23 5 / 8 " (600) 71 7 / 8 " (1826) 47 1 / 4 " (1200) 95 1 / 2 " (2426) 48" (1219) 96" (2438) 10.17 (0.94) 18 15 / 16 " (481) 20 7 / 8 " (530) 70 1 / 8 " (1781) 13.27 (1.23) 11.72 (1.09) 29.67 (2.76)
5080 2 29 5 / 8 " (752) 65 7 / 8 " (1673) 59 1 / 4 " (1505) 95 1 / 2 " (2426) 60" (1524) 96" (2438) 24.85 (2.31) 51 15 / 16 " (1319) 55 13 / 16 " (1418) 64 1 / 8 " (1629) 19.14 (1.78) 33.54 (3.12) 36.68 (3.41)
AHIADxx68 AHIADxx611 AHIADxx80 AHIADxx68AP /PA AHIADxx611AP /PA AHIADxx80AP /PA
5080 1 29 5 / 8 " (752) 65 7 / 8 " (1673) 59 1 / 4 " (1505) 95 1 / 2 " (2426) 60" (1524) 96" (2438) 11.97 (1.11) 24 15 / 16 " (633) 26 7 / 8 " (683) 64 1 / 8 " (1629) 19.14 (1.78) 14.53 (1.35) 36.68 (3.41)
5480 2 31 5 / 8 " (803) 63 7 / 8 " (1622) 63 1 / 4 " (1607) 95 1 / 2 " (2426) 64" (1626) 96" (2438) 25.80 (2.40) 55 15 / 16 " (1421) 59 13 / 16 " (1519) 62 1 / 8 " (1578) 21.05 (1.96) 35.77 (3.32) 38.97 (3.62)
5480 1 31 5 / 8 " (803) 63 7 / 8 " (1622) 63 1 / 4 " (1607) 95 1 / 2 " (2426) 64" (1626) 96" (2438) 12.46 (1.16) 26 15 / 16 " (684) 28 7 / 8 " (733) 62 1 / 8 " (1578) 21.05 (1.96) 15.45 (1.44) 38.97 (3.62)
6080 2 35 5 / 8 " (905) 59 7 / 8 " (1521) 71 1 / 4 " (1810) 95 1 / 2 " (2426) 72" (1829) 96" (2438) 27.37 (2.54) 63 15 / 16 " (1624) 67 13 / 16 " (1722) 58 1 / 8 " (1476) 24.79 (2.30) 40.15 (3.73) 43.47 (4.04)
6080 1 35 5 / 8 " (905) 59 7 / 8 " (1521) 71 1 / 4 " (1810) 95 1 / 2 " (2426) 72" (1829) 96" (2438) 13.27 (1.23) 30 15 / 16 " (786) 32 7 / 8 " (835) 58 1 / 8 " (1476) 24.79 (2.30) 17.24 (1.60) 43.47 (4.04)
6480 2 37 5 / 8 " (956) 57 7 / 8 " (1470) 75 1 / 4 " (1911) 95 1 / 2 " (2426) 76" (1930) 96" (2438) 27.99 (2.60) 67 15 / 16 " (1726) 71 13 / 16 " (1824) 56 1 / 8 " (1426) 26.63 (2.47) 42.30 (3.93) 45.69 (4.24)
6480 1 37 5 / 8 " (956) 57 7 / 8 " (1470) 75 1 / 4 " (1911) 95 1 / 2 " (2426) 76" (1930) 96" (2438) 13.59 (1.26) 32 15 / 16 " (837) 34 7 / 8 " (886) 56 1 / 8 " (1426) 26.63 (2.47) 19.84 (1.84) 45.69 (4.24)
• "Door Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters or square meters.
*For two-panel patio doors with one panel open, clear opening is based on active panel being open and passive panel being closed.

1
Custom-size doors are available in ⁄8" (3) increments.
Traditional panels are standard. Custom designed and ⁄4-light panels are also available. Stationary doors
3
AOSDxx80 AOSDxx80AP /PA are also available (i.e. 3180S or 4080SS). Add AOSD to "Door Number" listed in table (i.e. AOSD2168).
Complementary Springline Outswing Patio Door Dimensions and Specifications
™
Number Door Dimensions Min. Rough Opening Clear Clear Opening Maximums
Door of Shoulder Opening Glass Vent Overall Door
Number Panels Radius Height Width Height Width Height Area 90 ° Width Full Width Height Area Area Area
Open* Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
3180 1 18" (457) 77 1 / 2 " (1969) 35 15 / 16 " (913) 95 1 / 2 " (2426) 37" (940) 96" (2438) 17.52 (1.63) 31 3 / 8 " (797) 33 5 / 16 " (846) 75 3 / 4 " (1924) 13.28 (1.23) 20.53 (1.91) 22.88 (2.13)
3380 1 19" (483) 76 1 / 2 " (1943) 37 15 / 16 " (964) 95 1 / 2 " (2426) 39" (991) 96" (2438) 18.33 (1.70) 33 3 / 8 " (848) 35 5 / 16 " (897) 74 3 / 4 " (1899) 14.31 (1.33) 21.71 (2.02) 24.09 (2.24)
4080 2 23 5 / 8 " (600) 71 7 / 8 " (1826) 47 1 / 4 " (1200) 95 1 / 2 " (2426) 48" (1219) 96" (2438) 21.73 (2.02) 40 11 / 16 " (1033) 44 5 / 8 " (1133) 70 1 / 8 " (1781) 13.27 (1.23) 27.12 (2.52) 29.67 (2.76)
4080 1 23 5 / 8 " (600) 71 7 / 8 " (1826) 47 1 / 4 " (1200) 95 1 / 2 " (2426) 48" (1219) 96" (2438) 10.35 (0.96) 19 1 / 4 " (489) 21 1 / 4 " (540) 70 1 / 8 " (1781) 13.27 (1.23) 11.72 (1.09) 29.67 (2.76)
5080 2 29 5 / 8 " (752) 65 7 / 8 " (1673) 59 1 / 4 " (1505) 95 1 / 2 " (2426) 60" (1524) 96" (2438) 25.22 (2.34) 52 11 / 16 " (1338) 56 5 / 8 " (1438) 64 1 / 8 " (1629) 19.14 (1.78) 33.90 (3.15) 36.68 (3.41)
5080 1 29 5 / 8 " (752) 65 7 / 8 " (1673) 59 1 / 4 " (1505) 95 1 / 2 " (2426) 60" (1524) 96" (2438) 12.13 (1.13) 25 1 / 4 " (641) 27 1 / 4 " (692) 64 1 / 8 " (1629) 19.14 (1.78) 14.53 (1.35) 36.68 (3.41)
AOADxx68AP /PA
AOADxx80
AOADxx80AP /PA
AOADxx68
AOADxx611
AOADxx611AP /PA
5480 2 31 5 / 8 " (803) 63 7 / 8 " (1622) 63 1 / 4 " (1607) 95 1 / 2 " (2426) 64" (1626) 96" (2438) 26.16 (2.43) 56 11 / 16 " (1440) 60 5 / 8 " (1540) 62 1 / 8 " (1578) 21.05 (1.96) 36.12 (3.36) 38.97 (3.62)
5480 1 31 5 / 8 " (803) 63 7 / 8 " (1622) 63 1 / 4 " (1607) 95 1 / 2 " (2426) 64" (1626) 96" (2438) 12.62 (1.17) 27 1 / 4 " (692) 29 1 / 4 " (743) 62 1 / 8 " (1578) 21.05 (1.96) 15.45 (1.44) 38.97 (3.62)
6080 2 35 5 / 8 " (905) 59 7 / 8 " (1521) 71 1 / 4 " (1810) 95 1 / 2 " (2426) 72" (1829) 96" (2438) 27.70 (2.57) 64 11 / 16 " (1643) 68 5 / 8 " (1743) 58 1 / 8 " (1476) 24.79 (2.30) 40.48 (3.76) 43.47 (4.04)
6080 1 35 5 / 8 " (905) 59 7 / 8 " (1521) 71 1 / 4 " (1810) 95 1 / 2 " (2426) 72" (1829) 96" (2438) 13.42 (1.25) 31 1 / 4 " (794) 33 1 / 4 " (845) 58 1 / 8 " (1476) 24.79 (2.30) 17.24 (1.60) 43.47 (4.04)
6480 2 37 5 / 8 " (956) 57 7 / 8 " (1470) 75 1 / 4 " (1911) 95 1 / 2 " (2426) 76" (1930) 96" (2438) 28.31 (2.63) 68 11 / 16 " (1745) 72 5 / 8 " (1845) 56 1 / 8 " (1426) 26.63 (2.47) 42.62 (3.96) 45.69 (4.24)
6480 1 37 5 / 8 " (956) 57 7 / 8 " (1470) 75 1 / 4 " (1911) 95 1 / 2 " (2426) 76" (1930) 96" (2438) 13.74 (1.28) 33 1 / 4 " (845) 35 1 / 4 " (895) 56 1 / 8 " (1426) 26.63 (2.47) 19.84 (1.84) 45.69 (4.24)
• "Door Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters or square meters.
*For two-panel patio doors with one panel open, clear opening is based on active panel being open and passive panel being closed.
