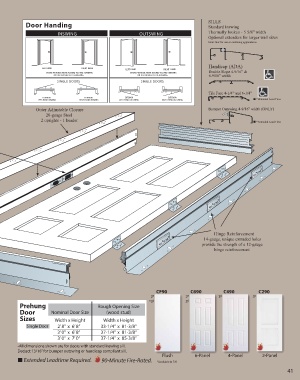

Page 41 - CODEL Doors 2019 Exterior Catalog

SILLS
Door Handing Standard Inswing
Thermally broken - 5 5/8” width
INSWING OUTSWING
Optional extenders for larger wall sizes
Note: Not for use on outswing applications.

Handicap (ADA)
Handicap (ADA)
LEFT RIGHT
Double Slope 4-9/16” &
DOORS PICTURED ABOVE ASSUME YOU ARE STANDING DOORS PICTURED ABOVE ASSUME YOU ARE STANDING Double Slope 4-9/16”
and 6-9/16” width
ON THE OUTSIDE OF THE BUILDING. ON THE OUTSIDE OF THE BUILDING. 6-9/16” width
SINGLE DOORS SINGLE DOORS
Tile Face 4-1/4” and 7” width
Tile Face 4-1/4” and 6-1/4”
EXTERIOR EXTERIOR EXTERIOR EXTERIOR ■ *Extended Lead Time
LEFT-HAND INSWING RIGHT-HAND INSWING LEFT-HAND OUTSWING RIGHT-HAND OUTSWING
Bumper Outswing 4 1/2” width
Outer Adjustable Closure Bumper Outswing 4-9/16” width (ONLY)
20-gauge Steel
2 uprights - 1 header ■ *Extended Lead Time

Adjustable T-Strike
1/4” of adjustment allows for ease of
field installations for proper door closure

Closure Span Adjustment Chart
Wall Sizes
4 1/2” - 5 1/2”
5 1/2” - 6 1/2”
6 1/2” - 7 1/2”
7 1/2”- 8 1/2”
8 1/2”- 9 1/2”
9 1/2”- 10 1/2”

Weatherstripping
Schlegal foam-filled
compression (QEBD500) Hinge Reinforcement
90 Min. Fire Rating 14-gauge, unique extruded holes
provide the strength of a 12-gauge
hinge reinforcement

CF90 C690 C490 C290
Prime Bright White EG 2 8 2 8 3 0 3 0
Galvanized 20-gauge steel to provide *3 0 3 0
superior corrosion resistance and an Prehung Rough Opening Size
optimal surface for painting Door Nominal Door Size (wood stud)
Sizes Width x Height Width x Height
Single Door 2’ 8” x 6’ 8” 33-1/4” x 81-3/8”
3’ 0” x 6’ 8” 37-1/4” x 81-3/8”
3’ 0” x 7’ 0” 37-1/4” x 85-3/8”
-All dimensions shown are for doors with standard inswing sill.
Deduct 13/16” for bumper outswing or handicap compliant sill.
Flush 6-Panel 4-Panel 2-Panel
n Extended Leadtime Required. 90-Minute Fire-Rated. *Available in 7/0

41
