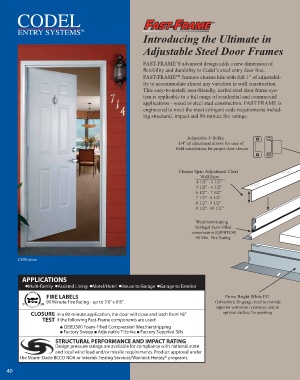

Page 40 - CODEL Doors 2019 Exterior Catalog

SILLS
Standard Inswing
TM Thermally broken - 5 5/8” width
Introducing the Ultimate in Optional extenders for larger wall sizes
Note: Not for use on outswing applications.
Adjustable Steel Door Frames

FAST-FRAME’S advanced design adds a new dimension of Handicap (ADA)
flexibility and durability to Codel’s steel entry door line. Double Slope 4-9/16”
FAST-FRAME features closure kits with full 1” of adjustabil- and 6-9/16” width
TM
ity to accommodate almost any variation in wall construction.
This easy-to-install, user-friendly, kerfed steel door frame sys- Tile Face 4-1/4” and 7” width
tem is applicable to a full range of residential and commercial ■ *Extended Lead Time
applications - wood or steel stud construction. FAST FRAME is
engineered to meet the most stringent code requirements includ- Outer Adjustable Closure Bumper Outswing 4 1/2” width
ing structural, impact and 90-minute fire ratings. 20-gauge Steel
2 uprights - 1 header ■ *Extended Lead Time

Adjustable T-Strike
1/4” of adjustment allows for ease of
field installations for proper door closure

Closure Span Adjustment Chart
Wall Sizes
4 1/2” - 5 1/2”
5 1/2” - 6 1/2”
6 1/2” - 7 1/2”
7 1/2”- 8 1/2”
8 1/2”- 9 1/2”
9 1/2”- 10 1/2”

Weatherstripping
Schlegal foam-filled
compression (QEBD500) Hinge Reinforcement
90 Min. Fire Rating 14-gauge, unique extruded holes
provide the strength of a 12-gauge
hinge reinforcement
C690 door.

APPLICATIONS
●Multi-Family ●Assisted Living ●Motel/Hotel ●House to Garage ●Garage to Exterior

FIRE LABELS Prime Bright White EG
90 Minute Fire Rating - up to 3’0” x 6’8” . Galvanized 20-gauge steel to provide
superior corrosion resistance and an
optimal surface for painting
CLOSURE In a 90-minute application, the door will close and latch from 18”
TEST if the following Fast-Frame components are used:
● QEBD500 Foam-Filled Compression Weatherstripping
● Factory Sweep ● Adjustable T-Strike ● Factory Supplied Sills
STRUCTURAL PERFORMANCE AND IMPACT RATING
Design pressure ratings are available for compliance with national, state
and local wind load and/or missile requirements. Product approval under
the Miami-Dade BCCO NOA or Intertek Testing Services/Warnock Hersey programs.
