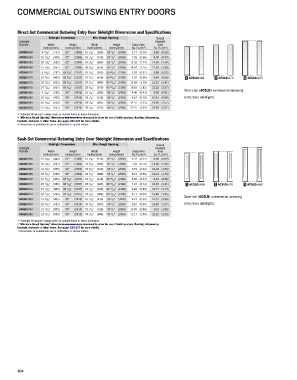

Page 206 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

COMMERCIAL OUTSWING ENTRY DOORS

ACDxx68 ACDxx70 ACDxx80 ACDxx68AP /PA ACDxx70AP /PA ACDxx80AP /PA

Direct-Set Commercial Outswing Entry Door Sidelight Dimensions and Specifications
Sidelight Dimensions Min. Rough Opening Overall
Sidelight Sidelight
Number Width Height Width Height Glass Area Area
Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
ACSLD0868 9 15 / 16 " (252) 82" (2083) 10 7 / 16 " (265) 82 1 / 2 " (2096) 3.77 (0.35) 5.66 (0.53)
ACSLD1068 15 15 / 16 " (405) 82" (2083) 16 7 / 16 " (418) 82 1 / 2 " (2096) 7.03 (0.65) 9.08 (0.84)
ACSLD2068 25 11 / 16 " (652) 82" (2083) 26 3 / 16 " (665) 82 1 / 2 " (2096) 12.32 (1.14) 14.63 (1.36)
ACSLD3068 37 11 / 16 " (957) 82" (2083) 38 3 / 16 " (970) 82 1 / 2 " (2096) 18.84 (1.75) 21.46 (1.99)
ACSLD0870 9 15 / 16 " (252) 85 5 / 16 " (2167) 10 7 / 16 " (265) 85 13 / 16 " (2180) 3.93 (0.37) 5.89 (0.55)
ACSLOxx68 85 13 / 16 " (2180)
9.44
ACSLD1070 15 15 / 16 " (405) 85 5 / 16 " (2167) 16 7 / 16 " (418) ACSLOxx70 7.32 (0.68) ACSLOxx80 (0.88) ACSLDxx68 ACSLDxx70 ACSLDxx80
ACSLD2070 25 11 / 16 " (652) 85 5 / 16 " (2167) 26 3 / 16 " (665) 85 13 / 16 " (2180) 12.84 (1.19) 15.22 (1.41)
ACSLD3070 37 11 / 16 " (957) 85 5 / 16 " (2167) 38 3 / 16 " (970) 85 13 / 16 " (2180) 19.63 (1.82) 22.33 (2.07)
ACSLD0880 9 15 / 16 " (252) 95" (2413) 10 7 / 16 " (265) 95 1 / 2 " (2426) 4.40 (0.41) 6.56 (0.61) Direct-set (ACSLD) commercial outswing
ACSLD1080 15 15 / 16 " (405) 95" (2413) 16 7 / 16 " (418) 95 1 / 2 " (2426) 8.19 (0.76) 10.51 (0.98) entry door sidelights.
ACSLD2080 25 11 / 16 " (652) 95" (2413) 26 3 / 16 " (665) 95 1 / 2 " (2426) 14.37 (1.33) 16.95 (1.57)
ACSLD3080 37 11 / 16 " (957) 95" (2413) 38 3 / 16 " (970) 95 1 / 2 " (2426) 21.97 (2.04) 24.86 (2.31)
• "Sidelight Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning,
brackets, fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters or square meters.
ACDxx68 ACDxx70 ACDxx80 ACDxx68AP /PA ACDxx70AP /PA ACDxx80AP /PA
Sash-Set Commercial Outswing Entry Door Sidelight Dimensions and Specifications
Sidelight Dimensions Min. Rough Opening Overall
Sidelight Sidelight
Number Width Height Width Height Glass Area Area
Inches/(mm) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
ACSLO1068 15 15 / 16 " (405) 82" (2083) 16 7 / 16 " (418) 82 1 / 2 " (2096) 3.41 (0.32) 9.08 (0.84)
ACSLO2068 25 11 / 16 " (652) 82" (2083) 26 3 / 16 " (665) 82 1 / 2 " (2096) 7.56 (0.70) 14.63 (1.36)
ACSLO2668 31 11 / 16 " (805) 82" (2083) 32 3 / 16 " (818) 82 1 / 2 " (2096) 8.79 (0.82) 18.04 (1.68)
ACSLO2868 33 11 / 16 " (856) 82" (2083) 34 3 / 16 " (868) 82 1 / 2 " (2096) 9.21 (0.86) 19.18 (1.78)
ACSLO1070 15 15 / 16 " (405) 85 5 / 16 " (2167) 16 7 / 16 " (418) 85 13 / 16 " (2180) 3.59 (0.33) 9.44 (0.88)
ACSLO2070 25 11 / 16 " (652) 85 5 / 16 " (2167) 26 3 / 16 " (665) 85 13 / 16 " (2180) 7.97 (0.74) 15.22 (1.41) ACSLOxx68 ACSLOxx70 ACSLOxx80 ACSLDxx68 ACSLDxx70 ACSLDxx80
ACSLO2670 31 11 / 16 " (805) 85 5 / 16 " (2167) 32 3 / 16 " (818) 85 13 / 16 " (2180) 9.26 (0.86) 18.77 (1.74)
ACSLO2870 33 11 / 16 " (856) 85 5 / 16 " (2167) 34 3 / 16 " (868) 85 13 / 16 " (2180) 9.71 (0.90) 19.96 (1.85) Sash-set (ACSLO) commercial outswing
ACSLO1080 15 15 / 16 " (405) 95" (2413) 16 7 / 16 " (418) 95 1 / 2 " (2426) 4.13 (0.38) 10.51 (0.98)
ACSLO2080 25 11 / 16 " (652) 95" (2413) 26 3 / 16 " (665) 95 1 / 2 " (2426) 9.16 (0.85) 16.95 (1.57) entry door sidelights.
ACSLO2680 31 11 / 16 " (805) 95" (2413) 32 3 / 16 " (818) 95 1 / 2 " (2426) 10.65 (0.99) 20.9 (1.94)
ACSLO2880 33 11 / 16 " (856) 95" (2413) 34 3 / 16 " (868) 95 1 / 2 " (2426) 11.17 (1.04) 22.22 (2.06)
• "Sidelight Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning,
brackets, fasteners or other items. See pages 236-237 for more details.
• Dimensions in parentheses are in millimeters or square meters.
