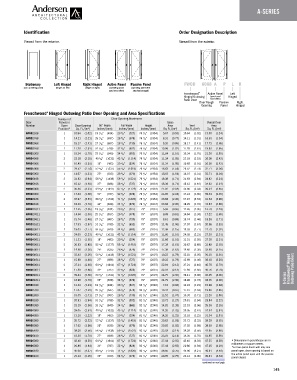

Page 147 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

A-SERIES

Identification Order Designation Description
Viewed from the exterior. Viewed from the exterior.

Stationary Left Hinged Right Hinged Active Panel Passive Panel FWOD 6068 A P L R
(non-operating panel) (hinges on left) (hinges on right) (operating panel (operating panel with
used most often) attached astragal)
Frenchwood ® Active Panel Left
Hinged Outswing (panel used Hinged
Patio Door most often)
Door Rough Passive Right
Opening Panel Hinged
Frenchwood Hinged Outswing Patio Door Opening and Area Specifications
®
Number of Clear Opening Maximums
Door Panels in Glass Overall Door
Number Open Clear Opening 90 ° Width Full Width Height Area Vent Area
Position* Sq. Ft./(m 2 ) Inches/(mm) Inches/(mm) Inches/(mm) Sq. Ft./(m 2 ) Sq. Ft./(m 2 ) Sq. Ft./(m 2 )
FWOD2168 1 10.94 (1.02) 19 1 / 16 " (484) 20 3 / 4 " (527) 76 1 / 8 " (1934) 5.67 (0.53) 10.94 (1.02) 13.30 (1.24)
FWOD2768 1 14.11 (1.31) 25 1 / 16 " (637) 26 3 / 4 " (679) 76 1 / 8 " (1934) 8.31 (0.77) 14.11 (1.31) 16.61 (1.54)
FWOD2968 1 15.17 (1.41) 27 1 / 16 " (687) 28 3 / 4 " (730) 76 1 / 8 " (1934) 9.20 (0.85) 15.17 (1.41) 17.72 (1.65)
FWOD3168 1 17.28 (1.61) 31 1 / 16 " (789) 32 3 / 4 " (832) 76 1 / 8 " (1934) 10.96 (1.02) 17.28 (1.61) 19.93 (1.85)
FWOD3368 1 18.34 (1.70) 33 1 / 16 " (840) 34 3 / 4 " (883) 76 1 / 8 " (1934) 11.84 (1.10) 18.34 (1.70) 21.03 (1.95)
FWOD4068 2 23.18 (2.15) 40 5 / 8 " (1032) 43 7 / 8 " (1114) 76 1 / 8 " (1934) 11.34 (1.05) 23.18 (2.15) 26.09 (2.42)
FWOD4068 1 10.89 (1.01) 19" (483) 20 5 / 8 " (524) 76 1 / 8 " (1934) 11.34 (1.05) 10.89 (1.01) 26.09 (2.42)
FWOD5068 2 29.52 (2.74) 52 5 / 8 " (1337) 55 7 / 8 " (1419) 76 1 / 8 " (1934) 16.63 (1.54) 29.52 (2.74) 32.71 (3.04)
FWOD5068 1 14.07 (1.31) 25" (635) 26 5 / 8" (676) 76 1 / 8" (1934) 16.63 (1.54) 14.07 (1.31) 32.71 (3.04)
FWOD5468 2 31.63 (2.94) 56 5 / 8 " (1438) 59 7 / 8 " (1521) 76 1 / 8 " (1934) 18.39 (1.71) 31.63 (2.94) 34.92 (3.24)
FWOD5468 1 15.12 (1.40) 27" (686) 28 5 / 8 " (727) 76 1 / 8 " (1934) 18.39 (1.71) 15.12 (1.40) 34.92 (3.24)
FWOD6068 2 35.86 (3.33) 64 5 / 8 " (1641) 67 7 / 8 " (1724) 76 1 / 8 " (1934) 21.92 (2.04) 35.86 (3.33) 39.34 (3.65)
FWOD6068 1 17.24 (1.60) 31" (787) 32 5 / 8 " (829) 76 1 / 8 " (1934) 21.92 (2.04) 17.24 (1.60) 39.34 (3.65)
FWOD6468 2 37.97 (3.53) 68 5 / 8 " (1743) 71 7 / 8 " (1826) 76 1 / 8 " (1934) 23.68 (2.20) 37.97 (3.53) 41.54 (3.86)
FWOD6468 1 18.29 (1.70) 33" (838) 34 5 / 8 " (879) 76 1 / 8 " (1934) 23.68 (2.20) 18.29 (1.70) 41.54 (3.86)
FWOD21611 1 11.35 (1.05) 19 1 / 16 " (484) 20 3 / 4 " (527) 79" (2007) 5.93 (0.55) 11.35 (1.05) 13.78 (1.28)
FWOD27611 1 14.64 (1.36) 25 1 / 16 " (637) 26 3 / 4 " (679) 79" (2007) 8.69 (0.81) 14.64 (1.36) 17.22 (1.60)
FWOD29611 1 15.74 (1.46) 27 1 / 16 " (687) 28 3 / 4 " (730) 79" (2007) 9.61 (0.89) 15.74 (1.46) 18.36 (1.71)
FWOD31611 1 17.93 (1.67) 31 1 / 16 " (789) 32 3 / 4 " (832) 79" (2007) 11.45 (1.06) 17.93 (1.67) 20.65 (1.92)
FWOD33611 1 19.03 (1.77) 33 1 / 16 " (840) 34 3 / 4 " (883) 79" (2007) 12.38 (1.15) 19.03 (1.77) 21.79 (2.02)
FWOD40611 2 24.05 (2.23) 40 5 / 8 " (1032) 43 7 / 8 " (1114) 79" (2007) 11.86 (1.10) 24.05 (2.23) 27.03 (2.51)
FWOD40611 1 11.31 (1.05) 19" (483) 20 5 / 8 " (524) 79" (2007) 11.86 (1.10) 11.31 (1.05) 27.03 (2.51)
FWOD50611 2 30.63 (2.85) 52 5 / 8 " (1337) 55 7 / 8 " (1419) 79" (2007) 17.38 (1.61) 30.63 (2.85) 33.89 (3.15)
FWOD50611 1 14.60 (1.36) 25" (635) 26 5 / 8 " (676) 79" (2007) 17.38 (1.61) 14.60 (1.36) 33.89 (3.15)
FWOD54611 2 32.83 (3.05) 56 5 / 8 " (1438) 59 7 / 8 " (1521) 79" (2007) 19.22 (1.79) 32.83 (3.05) 36.18 (3.36)
FWOD54611 1 15.69 (1.46) 27" (686) 28 5 / 8 " (727) 79" (2007) 19.22 (1.79) 15.69 (1.46) 36.18 (3.36)
FWOD60611 2 37.21 (3.46) 64 5 / 8 " (1641) 67 7 / 8 " (1724) 79" (2007) 22.91 (2.13) 37.21 (3.46) 40.76 (3.79) Frenchwood ® Hinged
FWOD60611 1 17.89 (1.66) 31" (787) 32 5 / 8 " (829) 79" (2007) 22.91 (2.13) 17.89 (1.66) 40.76 (3.79) Outswing Patio Doors
FWOD64611 2 39.41 (3.66) 68 5 / 8 " (1743) 71 7 / 8 " (1826) 79" (2007) 24.75 (2.30) 39.41 (3.66) 43.05 (4.00)
FWOD64611 1 18.98 (1.76) 33" (838) 34 5 / 8 " (879) 79" (2007) 24.75 (2.30) 18.98 (1.76) 43.05 (4.00) A-Series
FWOD2180 1 13.24 (1.23) 19 1 / 16 " (484) 20 3 / 4 " (527) 92 1 / 8 " (2340) 7.10 (0.66) 13.24 (1.23) 15.98 (1.48)
FWOD2780 1 17.07 (1.59) 25 1 / 16 " (637) 26 3 / 4 " (679) 92 1 / 8 " (2340) 10.41 (0.97) 17.07 (1.59) 19.96 (1.85)
FWOD2980 1 18.35 (1.71) 27 1 / 16 " (687) 28 3 / 4 " (730) 92 1 / 8 " (2340) 11.52 (1.07) 18.35 (1.71) 21.28 (1.98)
FWOD3180 1 20.91 (1.94) 31 1 / 16 " (789) 32 3 / 4 " (832) 92 1 / 8 " (2340) 13.72 (1.27) 20.91 (1.94) 23.94 (2.22)
FWOD3380 1 22.19 (2.06) 33 1 / 16 " (840) 34 3 / 4 " (883) 92 1 / 8 " (2340) 14.82 (1.38) 22.19 (2.06) 25.26 (2.35)
FWOD4080 2 28.05 (2.61) 40 5 / 8 " (1032) 43 7 / 8 " (1114) 92 1 / 8 " (2340) 14.20 (1.32) 28.05 (2.61) 31.34 (2.91)
FWOD4080 1 13.18 (1.22) 19" (483) 20 5 / 8 " (524) 92 1 / 8 " (2340) 14.20 (1.32) 13.18 (1.22) 31.34 (2.91)
FWOD5080 2 35.72 (3.32) 52 5 / 8 " (1337) 55 7 / 8 " (1419) 92 1 / 8 " (2340) 20.82 (1.93) 35.72 (3.32) 39.29 (3.65)
FWOD5080 1 17.02 (1.58) 25" (635) 26 5 / 8 " (676) 92 1 / 8 " (2340) 20.82 (1.93) 17.02 (1.58) 39.29 (3.65)
FWOD5480 2 38.28 (3.56) 56 5 / 8 " (1438) 59 7 / 8 " (1521) 92 1 / 8 " (2340) 23.03 (2.14) 38.28 (3.56) 41.95 (3.90)
FWOD5480 1 18.30 (1.70) 27" (686) 28 5 / 8 " (727) 92 1 / 8 " (2340) 23.03 (2.14) 18.30 (1.70) 41.95 (3.90)
FWOD6080 2 43.40 (4.03) 64 5 / 8 " (1641) 67 7 / 8 " (1724) 92 1 / 8 " (2340) 27.44 (2.55) 43.40 (4.03) 47.25 (4.39) • Dimensions in parentheses are in
millimeters or square meters.
FWOD6080 1 20.86 (1.94) 31" (787) 32 5 / 8 " (829) 92 1 / 8 " (2340) 27.44 (2.55) 20.86 (1.94) 47.25 (4.39)
*For two-panel doors with only one
FWOD6480 2 45.96 (4.27) 68 5 / 8 " (1743) 71 7 / 8 " (1826) 92 1 / 8 " (2340) 29.65 (2.75) 45.96 (4.27) 49.91 (4.64) panel open, clear opening is based on
the active panel open and the passive
FWOD6480 1 22.14 (2.06) 33" (838) 34 5 / 8 " (879) 92 1 / 8 " (2340) 29.65 (2.75) 22.14 (2.06) 49.91 (4.64)
panel closed.
continued on next page
