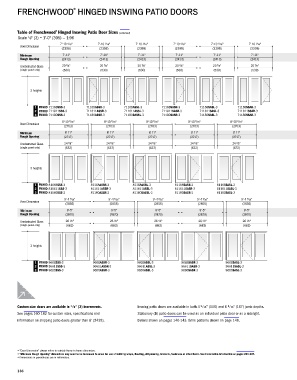

Page 138 - Andersen Architectural Collection A-Series 2018-19 Product Guide for Professionals

FRENCHWOOD HINGED INSWING PATIO DOORS
®

®
Table of Frenchwood Hinged Inswing Patio Door Sizes

(continued)
Scale ⁄8" (3) = 1'-0" (305) — 1:96
1
7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16" 7'-10 7 ⁄16"
Door Dimension
(2398) (2398) (2398) (2398) (2398) (2398) (2398) (2398) (2398) (2398) (2398)
Minimum 7'-11" 7'-11" 7'-11" 7'-11" 7'-11" 7'-11" 7'-11" 7'-11" 7'-11" 7'-11" 7'-11"
Rough Opening (2413) (2413) (2413) (2413) (2413) (2413) (2413) (2413) (2413) (2413) (2413)
Unobstructed Glass 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8" 20 7 ⁄8"
(single panel only) (530) (530) (530) (530) (530) (530) (530) (530) (530) (530) (530)

3 heights

FWHID 71168SSS-3 71168ASSR-3 71168ASSL-3 71168SASR-3 71168SASL-3 71168SSAR-3 71168SSAL-3 71168ASARR-3 71168ASALL-3 71168ASALR-3 71168ASARL-3
FWHID 711611SSS-3 711611ASSR-3 711611ASSL-3 711611SASR-3 711611SASL-3 711611SSAR-3 711611SSAL-3 711611ASARR-3 711611ASALL-3 711611ASALR-3 711611ASARL-3
FWHID 71180SSS-3 71180ASSR-3 71180SASSL-3 71180SASR-3 71180SASL-3 71180SSAR-3 71180SSAL-3 71180ASARR-3 71180ASALL-3 71180ASALR-3 71180ASARL-3
8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16" 8'-10 7 ⁄16"
Door Dimension
(2703) (2703) (2703) (2703) (2703) (2703) (2703) (2703) (2703) (2703) (2703)
Minimum 8'-11" 8'-11" 8'-11" 8'-11" 8'-11" 8'-11" 8'-11" 8'-11" 8'-11" 8'-11" 8'-11"
Rough Opening (2717) (2717) (2717) (2717) (2717) (2717) (2717) (2717) (2717) (2717) (2717)
Unobstructed Glass 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8" 24 7 ⁄8"
(single panel only) (632) (632) (632) (632) (632) (632) (632) (632) (632) (632) (632)

3 heights

FWHID 81168SSS-3 81168ASSR-3 81168ASSL-3 81168SASR-3 81168SASL-3 81168SSAR-3 81168SSAL-3 81168ASARR-3 81168ASALL-3 81168ASALR-3 81168ASARL-3
FWHID 811611SSS-3 811611ASSR-3 811611ASSL-3 811611SASR-3 811611SASL-3 811611SSAR-3 811611SSAL-3 811611ASARR-3 811611ASALL-3 811611ASALR-3 811611ASARL-3
FWHID 81180SSS-3 81180ASSR-3 81180SASSL-3 81180SASR-3 81180SASL-3 81180SSAR-3 81180SSAL-3 81180ASARR-3 81180ASALL-3 81180ASALR-3 81180ASARL-3
9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16" 9'-4 7 ⁄16"
Door Dimension
(2856) (2856) (2856) (2856) (2856) (2856) (2856) (2856) (2856) (2856) (2856)
Minimum 9'-5" 9'-5" 9'-5" 9'-5" 9'-5" 9'-5" 9'-5" 9'-5" 9'-5" 9'-5" 9'-5"
Rough Opening (2870) (2870) (2870) (2870) (2870) (2870) (2870) (2870) (2870) (2870) (2870)
Unobstructed Glass 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8" 26 7 ⁄8"
(single panel only) (683) (683) (683) (683) (683) (683) (683) (683) (683) (683) (683)

3 heights

FWHID 9668SSS-3 9668ASSR-3 9668ASSL-3 9668SASR-3 9668SASL-3 9668SSAR-3 9668SSAL-3 9668ASARR-3 9668ASALL-3 9668ASALR-3 9668ASARL-3
FWHID 96611SSS-3 96611ASSR-3 96611ASSL-3 96611SASR-3 96611SASL-3 96611SSAR-3 96611SSAL-3 96611ASARR-3 96611ASALL-3 96611ASALR-3 96611ASARL-3
FWHID 9680SSS-3 9680ASSR-3 9680ASSL-3 9680SASR-3 9680SASL-3 9680SSAR-3 9680SSAL-3 9680ASARR-3 9680ASALL-3 9680ASALR-3 9680ASARL-3

Custom-size doors are available in ⁄ 8" (3) increments. Inswing patio doors are available in both 4 ⁄ 16" (116) and 6 ⁄ 16" (167) jamb depths.
1
9
9
See pages 160-162 for custom sizes, specifications and Stationary (S) patio doors can be used as an individual patio door or as a sidelight.
information on shipping patio doors greater than 8' (2438). Details shown on pages 140-143. Grille patterns shown on page 146.

• "Door Dimension" always refers to outside frame to frame dimension.
• "Minimum Rough Opening" dimensions may need to be increased to allow for use of building wraps, flashing, sill panning, brackets, fasteners or other items. See installation information on pages 236-237.
• Dimensions in parentheses are in millimeters.

136
