MARVIN SIGNATURE COLLECTION MARVIN ®
TM

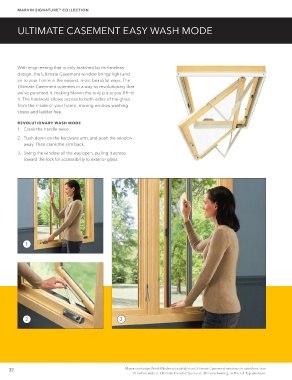

ULTIMATE CASEMENT EASY WASH MODE ULTIMATE CASEMENT FEATURES + OPTIONS

With engineering that is only matched by its timeless
design, the Ultimate Casement window brings light and
air to your home in the easiest, most beautiful ways. The
Ultimate Casement operates in a way so revolutionary that
we’ve patented it, making Marvin the only place you’ll find
it. The hardware allows access to both sides of the glass
from the inside of your home, making window washing
stress and ladder free.

REVOLUTIONARY WASH MODE RETRACTABLE SCREEN MULTI-POINT LOCKING SYSTEM ENDLESS DESIGN OPTIONS
1. Crank the handle twice. When a screen is needed, simply glide Multi-point locking mechanisms make A variety of divided lite patterns,

2. Push down on the hardware arm, and push the window the retractable screen across the window large casements easy to operate, and including a double hung look make
away. Then crank the arm back. to put the screen in place. Opened or enhance performance. energy-efficient casements the perfect
closed, the screen effortlessly integrates replacement window in older homes.
3. Swing the window all the way open, pulling it across into the jamb of the window.
toward the lock for accessibility to exterior glass.

40"
MAXIMUM SIZE
Largest size with MAX WIDTH
40" x 96 /8"
1
96 1 / 8 "
Largest size with MAX HEIGHT
36" x 102"

LARGE SIZES OPEN WITH EASE WINDOW OPENING CONTROL DEVICE FRICTION LIMITER
1 We have developed the most durable Limits the casement sash opening to Flip a lever to lock the sash securely in
hardware in the industry, which provides 4 inches or less when engaged. The place at multiple set angles, allowing
easy opening and smooth operation release mechanism allows for operation you to open your window on windy
on even the largest casements. beyond 4 inches. This option meets the days. Available for push out only.
ASTM F2090-10 standard.

ENDLESS OPTIONS TO DESIGN

2 3
MORE OF WHAT YOU IMAGINE.

32 Marvin exclusive Wash Mode not available on Ultimate Casement windows in sizes less than 33
20 inches wide or Ultimate French Casement, Ultimate Awning, or Round Top windows.
