MARVIN ESSENTIAL COLLECTION
TM

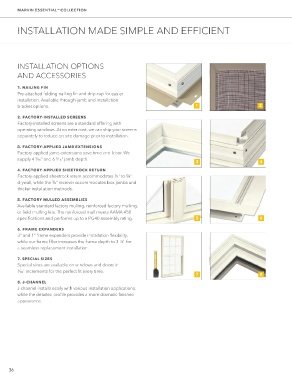

INSTALLATION MADE SIMPLE AND EFFICIENT

INSTALLATION OPTIONS EXTERIOR TRIM
AND ACCESSORIES Ultrex Exterior Trim is offered with all
®
rectangular Marvin Essential products
1. NAILING FIN in six exterior finishes. The durability,
Pre-attached folding nailing fin and drip cap for easier
installation. Available through-jamb and installation performance, and look of Essential
bracket options. 1 2 collection windows and doors can be
extended to the trim.
2. FACTORY-INSTALLED SCREENS
Factory-installed screens are a standard offering with BRICK MOULD
operating windows. At no extra cost, we can ship your screens 2" Brick Mould is available with or
separately to reduce on-site damage prior to installation. without 2 1/8" sill nosing.
FLAT
3. FACTORY-APPLIED JAMB EXTENSIONS 3 1/2" Flat Trim is available in Flat Casement window with Flat Exterior Trim in Stone White
Factory-applied jamb extensions save time and labor. We
supply 4 9/16" and 6 9/16" jamb depth. and Flat Ranch configurations with
3 4 or without 2 1/8" sill nosing.
4. FACTORY-APPLIED SHEETROCK RETURN
Factory-applied sheetrock return accommodates 1/2" to 5/8" SILL NOSE
drywall, while the 3/4" receiver accommodates box jambs and 2 1/8" Sill Nose provides authentic sill
thicker installation methods. appearance.
CONNECTION BARB
5. FACTORY MULLED ASSEMBLIES Barb and receiver attachment method
Available standard factory mulling, reinforced factory mulling,
or field mulling kits. The reinforced mull meets AAMA 450 provides for quick, secure installation. BRICK MOULD FLAT SILL NOSE CONNECTION BARB
specifications and performs up to a PG40 assembly rating. 5 6
6. FRAME EXPANDERS
3" and 1" frame expanders provide installation flexibility,
while our frame filler increases the frame depth to 3 1/4" for
a seamless replacement installation. TRIM
1 1
7. SPECIAL SIZES 1 2 3 4 5 6 7 8 9 CONFIGURATIONS
Special sizes are available on windows and doors in 10 11
1/64" increments for the perfect fit every time. 1F 12 Multiple configurations are available
7 8
in lineal lengths and factory pre-cut
104 105 106
| |||||||| |||||||| |||||||| |||||||| ||||
| |||||||| |||||||| |||||||| |||||||| ||||
8. J-CHANNEL kits in all six Essential collection BRICK FLAT FLAT BRICK MOULD FLAT FLAT RANCH
WITH
RANCH
MOULD
WITH
WITH
J-channel installs easily with various installation applications, exterior colors. SILL NOSE SILL NOSE SILL NOSE
while the detailed profile provides a more dramatic finished
appearance.

BRICK MOULD* FLAT* FLAT RANCH*

36 * Brick Mould, Flat, and Flat Ranch profiles are available on doors. 37
Sill profiles are not included for door trim sets.
