Page 27 - Marvin Elevate Product Catalog 2020

MARVIN ELEVATE COLLECTION MARVIN ®
TM

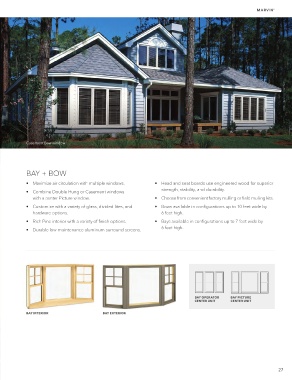

BAY + BOW

Casement Bow window

BAY + BOW
• Maximize air circulation with multiple windows. • Head and seat boards use engineered wood for superior

• Combine Double Hung or Casement windows strength, stability, and durability.
with a center Picture window. • Choose from convenient factory mulling or field mulling kits.
• Customize with a variety of glass, divided lites, and • Bows available in configurations up to 10 feet wide by
hardware options. 6 feet high.
• Rich Pine interior with a variety of finish options. • Bays available in configurations up to 7 feet wide by
6 feet high.
• Durable low-maintenance aluminum surround screens.

BAY OPERATOR BAY PICTURE
CENTER UNIT CENTER UNIT

BAY INTERIOR BAY EXTERIOR

Double Hung Bay window

26 27

Rough Opening Rough Opening
Rough Opening Rough Opening
4 9/16" 4 9/16"
(116) (116)
Projection Projection
4 9/16" 4 9/16"
1/4" 1/4" (116) 1/4" 1/4" (116)
(6) (6) (6) Projection (6) Projection
30 ˚ 30 ˚
Exterior of Exterior of
Sheathing 1/4" Sheathing 1/4" 1/4" 1/4"
Masonry Opening (6) Masonry Opening 30 ˚ (6) (6) 30 ˚ (6)
Exterior of Exterior of
Sheathing Sheathing
Masonry Opening Masonry Opening
